Tektronix DPO4034 350 MHz, 4 Analog Channels

( own it? please share by Add Your Own Review! )

Product Information
Manufacturer: Tektronix
Base Model: DPO4034
Product Series: MSO/DPO4000
Description: 350 MHz, 4 Analog Channels
Data Sheet PDF: Download DPO4034 Data Sheet
Total Listings: 2 Units
Dealer's Lowest Price: New : N/A
Used: N/A
Rental: N/A
Lease: N/A
Calibration: N/A

Price is not right? We can notify you when a listing matches your price.     Notify me

Get Competing Price Quotes on this DPO4034
Tektronix DPO4034 Product Overview

Key Performance Specifications

  • 350 MGHz Bandwidth Models
  • 4 Analog Channel Models
  • 2.5 GS/s Sample Rate on All Channels
  • 10 Megapoint Record Length on All Channels
  • >50,000 wfm/s Maximum Waveform Capture Rate
  • Suite of Advanced Triggers
  • 1 ns Calculated Rise Time 5 mV/div (typical)
  • 4 ms Maximum Duration at Highest Sample Rate (All channels)

Ease of Use Features

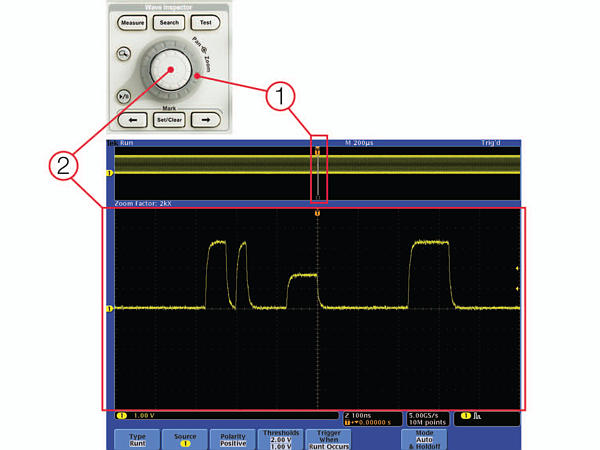

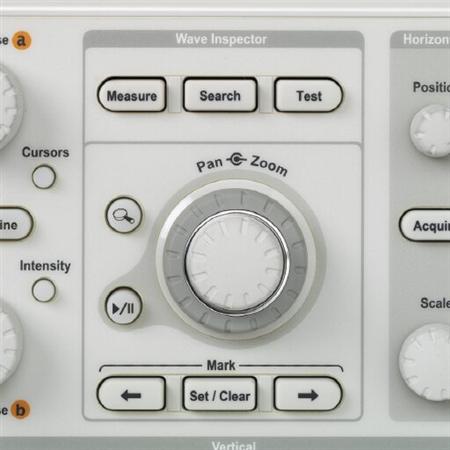

  • Wave Inspector® Controls provide Easy Navigation and Automated Search of Waveform Data
  • 29 Automated Measurements, Waveform Histograms, and FFT Analysis for Simplified Waveform Analysis
  • TekVPI® Probe Interface supports Active, Differential, and Current Probes for Automatic Scaling and Units
  • 10.4 in. (264 mm) XGA Color Display
  • Small Footprint and Lightweight – Only 5.4 in. (137 mm) deep and 11 lb. (5 kg)

Connectivity

  • USB 2.0 Host Port on the Front Panel and Two on the Rear Panel for Quick and Easy Data Storage, Printing, and Connecting a USB Keyboard
  • USB 2.0 Device Port on Rear Panel for Easy Connection to a PC or Direct Printing to a PictBridge®-compatible Printer
  • Integrated 10/100 Ethernet Port for Network Connection and Video Out Port to Export the Oscilloscope Display to a Monitor or Projector

Optional Serial Triggering and Analysis

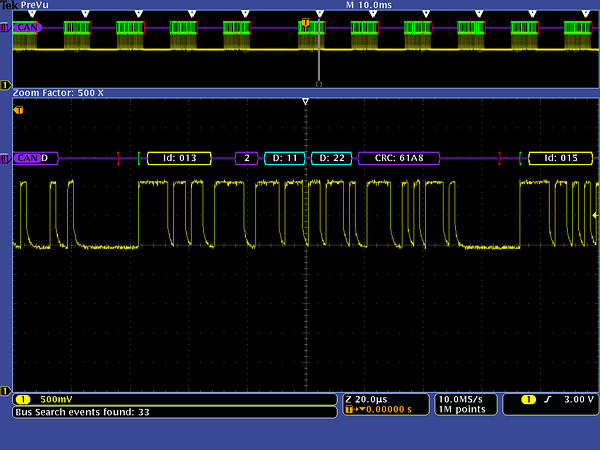

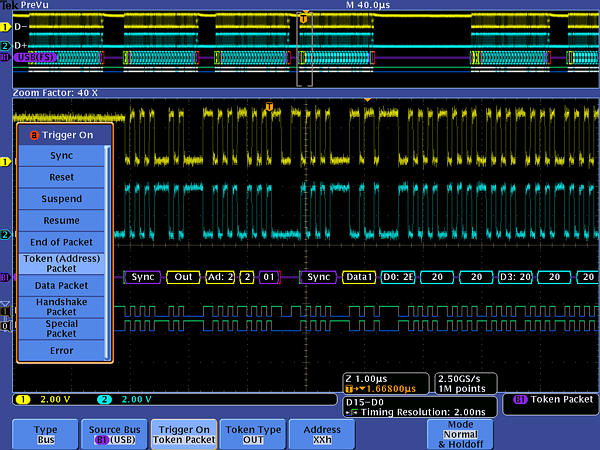

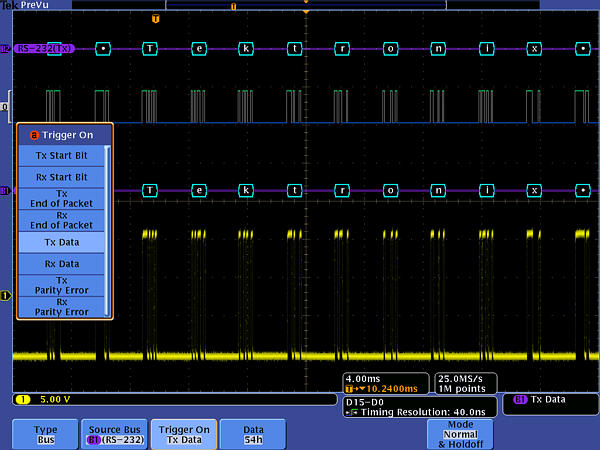

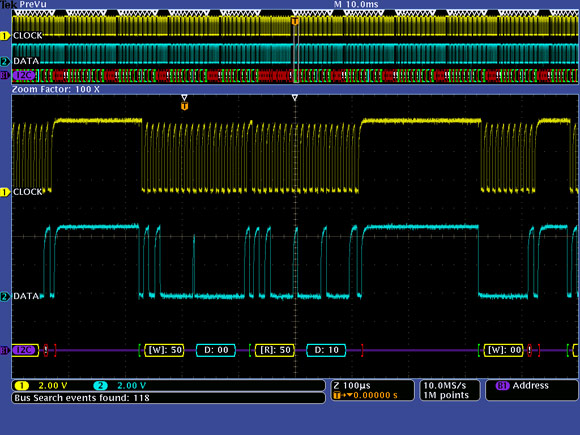

  • Automated Serial Triggering, Decode, and Search Options for I2C, SPI, USB, CAN, LIN, FlexRay, RS-232/422/485/UART, and I2S/LJ/RJ/TDM

Mixed Signal Design and Analysis (MSO Series)

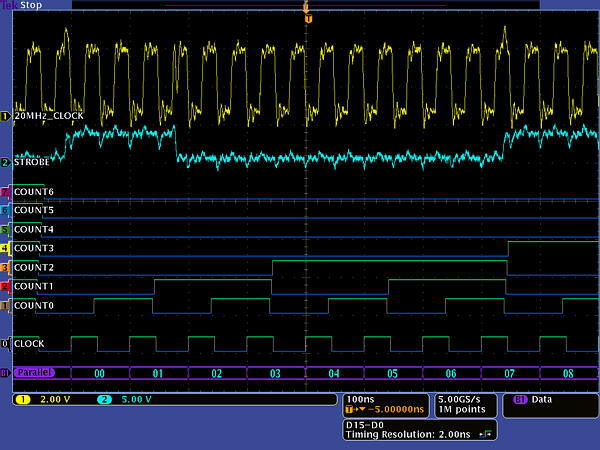

  • Automated Triggering, Decode, and Search on Parallel Buses

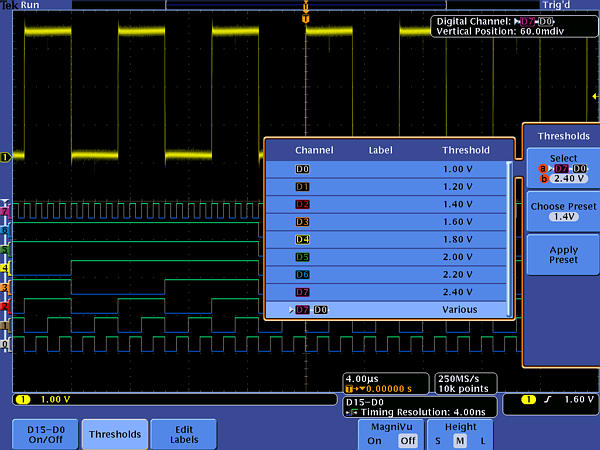

  • Per-channel Threshold Settings
  • Multichannel Setup and Hold Triggering

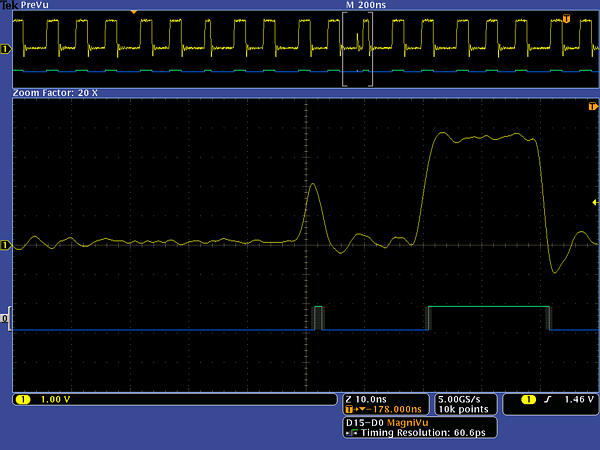

  • MagniVu™ High-speed Acquisition Provides 60.6 ps Fine Timing Resolution on Digital Channels

Optional Application Support

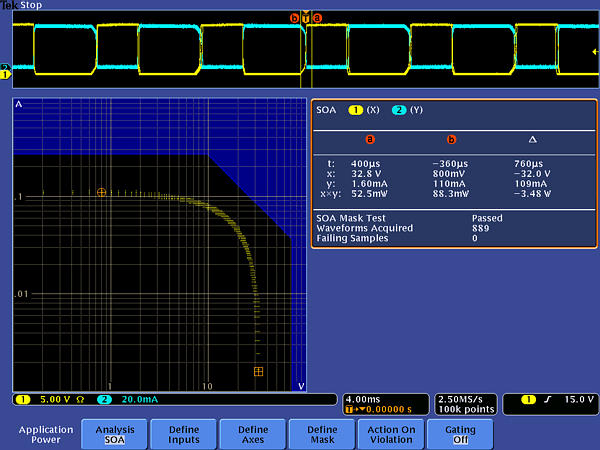

  • Power Analysis

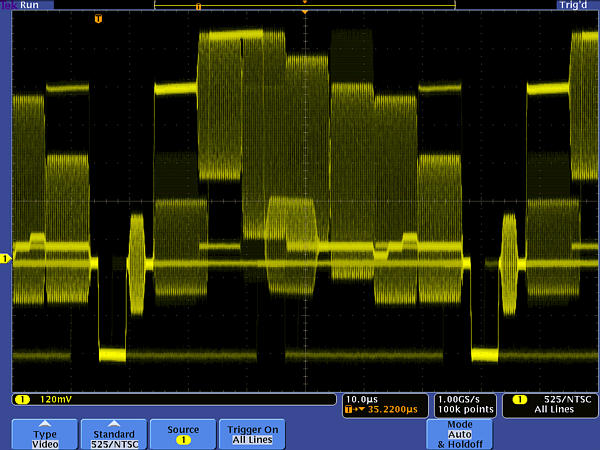

  • HDTV and Custom Video Analysis

More details on Tektronix website
