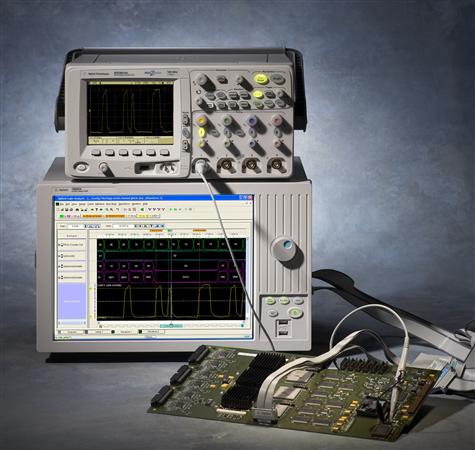

Logic Analyzer Configuration

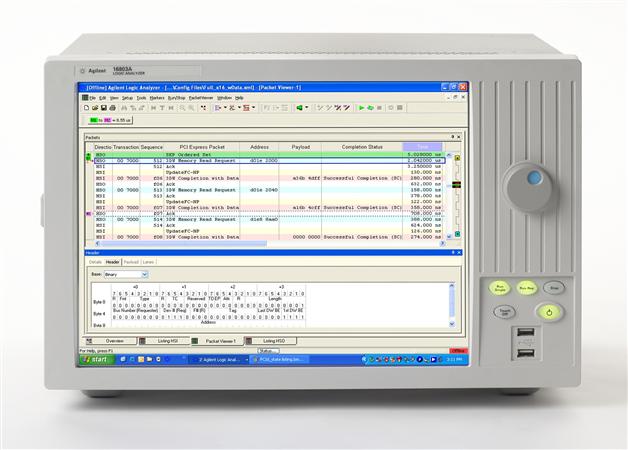

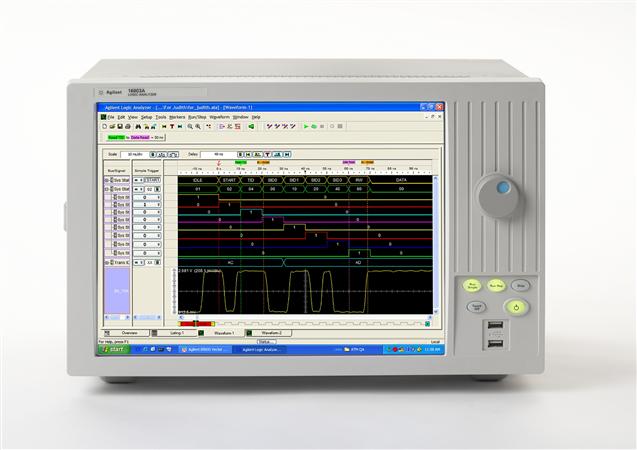

15-inch (38.1 cm) color display with touch screen available

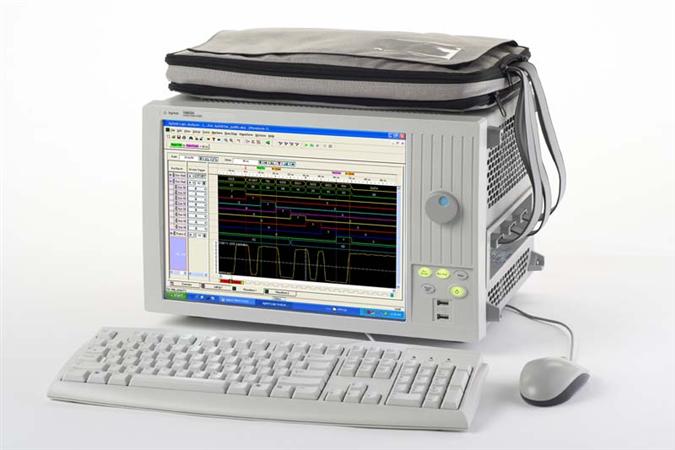

34-channel portable logic analyzer with up to 32 M acquisition memory depth
Comprehensive single-ended signal support, threshold is adjustable in -5 V to 5 V (10 mV increments)
48-channel pattern generator with up to 300 MVector/s speed and 16 M vector depth

Timing Analysis (Asynchronous Sampling)
4 GHz (250 ps) timing zoom with 64 K memory
1.0 GHz / 500 MHz (half / full-channel) conventional timing with deep memory
500 MHz transitional timing

State Analysis (Synchronous Sampling)
State clock rates up to 250 MHz
Data rates: up to 250 Mb/s
Automated threshold/sample position setup for accurate measurements on high-speed buses
Simultaneous eye diagrams on all channels identify problem signals quickly
