Home / Signal Generators / Keysight / E8267D-532

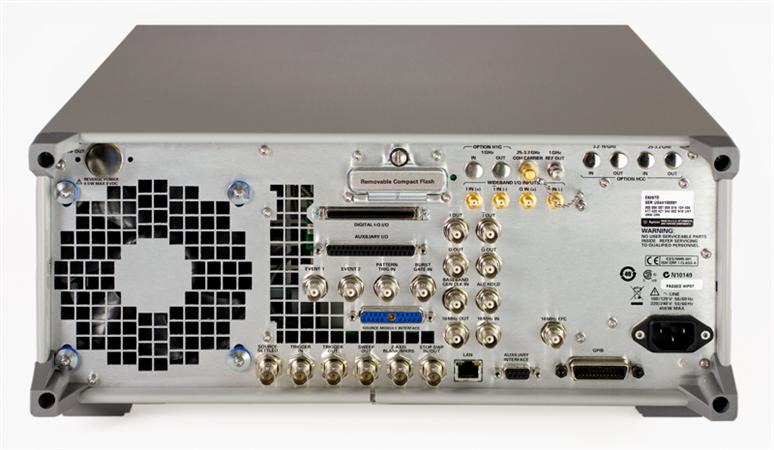

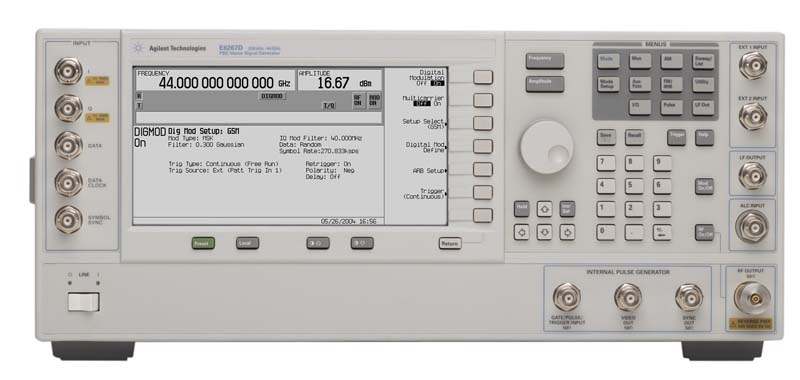

Keysight E8267D-532 PSG Analog Signal Generator, 100 kHz to 31.8 GHz Signal Generator





    •
    •
    •
Manufacturer: Keysight Product Series: E8267D PSG Series
Base Model: E8267D-532 Total Listings: 0 Units
Description: PSG Analog Signal Generator, 100 kHz to 31.8 GHz Signal Generator
Data Sheet PDF: Download E8267D-532 Data Sheet
Average New E8267D-532 Price: Get Quote
Average Used E8267D-532 Price: Get Quote
Estimated Rental Rate :
Get Quote
Average Lease Rate : Get Quote
E8267D-532 Calibration Price: Get Quote
* Rates depend on unit configuration, duration of the rental, and inventory levels and will vary from TestUnlimited estimates. Rental Tips
**Lease rate estimates are based on "A" credit rating, 60-month term. Unit configuration and inventory levels will cause the rate to vary from the estimate above. Benefits of Leasing
Quote Now !













Add message to dealer?



Quote E8267D-532 Now !

AVAILABLE INVENTORY

PRODUCT OPTIONS

PRODUCT SPECIFICATIONS

PRODUCT OVERVIEW

VIDEO & LITERATURES

USER REVIEWS

FORUM

GET QUOTE
Keysight E8267D-532 Inventory Listings and Pricings
Filter by:         APPLY FILTER

No available dealer listings for E8267D-532.
  Please select the Condition of the item
✖
Keysight E8267D-532 Specifications
Frequency Range100 kHz to 31.8 GHz
Output Range-130 dBm to 21 dBm
Type2.4 mm Male
Analog or VectorVector
Similar Products
N5183A-532
KEYSIGHT
N5183A-532 (N5183A-532)
MXG Microwave Analog Signal Generator, 100 kHz to 31.8 GHz
Keysight N5183A-532
E8257D-532
KEYSIGHT
E8257D-532 (E8257D-532)
250 kHz to 32 GHz
Keysight E8257D-532
N5183B-532
KEYSIGHT
N5183B-532 (N5183B-532)
MXG X-Series Microwave Analog Signal Generator, 9 kHz to 31.8 GHz
Keysight N5183B-532
N5173B-532
KEYSIGHT
N5173B-532 (N5173B-532)
9 kHz to 31.8 GHz
Keysight N5173B-532
Keysight E8267D-532 Product Overview
( own it? please share by Add Your Own Review! )
Frequency 100 kHz to 31.8 GHz, Extend to 1.1 THz
Frequency Options 13, 20, 31.8, 44 GHz, Extend to 1.1 THz
Performance Level ??????
Output Power @1 GHz -130 dBm to +21 dBm
Phase Noise @1 GHz (20 kHz offset) -143 dBc/Hz
Frequency Switching < 16 ms
Harmonics @1 GHz ≤ -28 to ≤ -55 dBc
IQ Modulation BW Internal/External 80 MHz to 4 GHz
Non-Harmonics @1 GHz

≤ 50 to ≤ -80 dBc
Sweep Mode
  • List
  • Step
  • Ramp
Baseband Generator Mode Waveform playback and real-time
Software-General Purpose
  • AM, FM, PM
  • Analog I/Q Input
  • ASK
  • Custom I/Q Map
  • Digital I/Q Input
  • FSK, MSK
  • I/Q Waveform
  • Jitter Injection
  • MATLAB
  • Multitone, NPR
  • Noise (AWGN)
  • PSK
  • Pulse
  • QAM
  • Real-Time I/Q
Software-Cellular/Wireless Connectivity
  • 1xEV-DO
  • 802.11 WLAN
  • 802.16 WiMAX
  • Bluetooth
  • cdma2000
  • cdmaOne
  • EDGE Evolution
  • GPRS/EGPRS
  • GSM/EDGE
  • HSPA, HSPA+
  • NADC, PDC
  • PHS, DECT
  • TD-SCDMA
  • TETRA, APCO
  • UWB
  • W-CDMA
Software-Audio/Video Broadcasting
  • ATSC, ATSC-M/H
  • CMMB
  • DOCSIS DS
  • DTMB
  • DVB-C/S/S2
  • DVB-T/H/T2
  • ISDB-T/TSB/TB/Tmm
  • J.83 Annex A/B/C
Software-Detection/Positioning/Tracking/Navigation
  • GNSS Waveforms
  • GPS
  • Radar
Waveform Playback Memory 64 Msa
Frequency Modulation-Maximum Deviation @1 GHz 2 MHz
Frequency Modulation-Rate @100 kHz Deviation DC to 10 MHz
Phase Modulation-Maximum Deviation in Normal Mode 10 to 1280 rad
Phase Modulation-Maximum Deviation in High-BW Mode 1 rad to 128 rad
Amplitude Modulation-Maximum Depth 90%
Amplitude Modulation-Rate 0 to 100 kHz
Applications Available Yes
Vector Yes

Keysight E8267D PSG Series
PRODUCT IDPRODUCT RATINGMANUFACTURERBASE MODELCATEGORYDESCRIPTION
2357 KeysightE8267DSignal GeneratorsPSG Analog Signal Generator, 100 kHz to 67 GHz
1328 KeysightE8267D-520Signal GeneratorsPSG Analog Signal Generator, 100 kHz to 20 GHz
1329 KeysightE8267D-532Signal GeneratorsPSG Analog Signal Generator, 100 kHz to 31.8 GHz
1330 KeysightE8267D-544Signal GeneratorsPSG Analog Signal Generator, 100 kHz to 44 GHz
