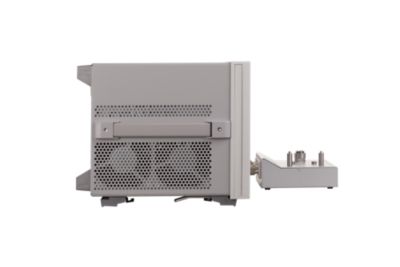

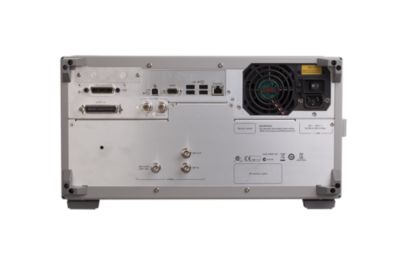

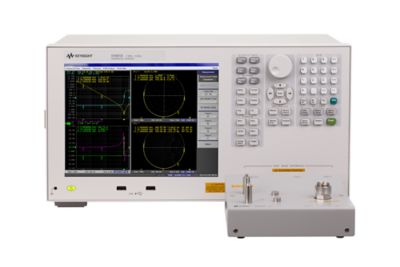

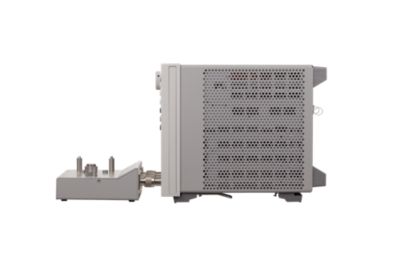

Keysight E4991B Impedance Analyzer, 1MHz to 500 MHz/1 GHz/3 GHz LCR Meters and Impedance Analyzer







  •
  •
  •
  •
Manufacturer: Keysight
Base Model: E4991B Total Listings: 5 Units
Description: Impedance Analyzer, 1MHz to 500 MHz/1 GHz/3 GHz LCR Meters and Impedance Analyzer
Data Sheet PDF: Download E4991B Data Sheet
Average New E4991B Price: Get Quote
Average Used E4991B Price: $72,325
Estimated Rental Rate :
Average Lease Rate : $2,299 / month ** lease to own
E4991B Calibration Price: Get Quote
* Rates depend on unit configuration, duration of the rental, and inventory levels and will vary from TestUnlimited estimates. Rental Tips
**Lease rate estimates are based on "A" credit rating, 60-month term. Unit configuration and inventory levels will cause the rate to vary from the estimate above. Benefits of Leasing
Quote Now !













Add message to dealer?



Quote E4991B Now !

AVAILABLE INVENTORY

PRODUCT OPTIONS

PRODUCT SPECIFICATIONS

PRODUCT OVERVIEW

VIDEO & LITERATURES

USER REVIEWS

FORUM

GET QUOTE

Keysight E4991B Inventory Listings and Pricings
Filter by:         APPLY FILTER

  PRODUCTRESELLERLIST PRICENEW PRICEUSED PRICE
23E4991B
Keysight E4991B
Keysight / Agilent E4991B Impedance Analyzer, 1 MHz - 3 GHz
 (2)
--$72,325
485E4991B
Keysight E4991B
Impedance Analyzer, 1 MHz to 500 MHz/1 GHz/3 GHz

---
7E4991B
Agilent E4991B
Impedance Analyzer, 1MHz to 500 MHz/1 GHz/3 GHz

---
7E4991B-300
Keysight Technologies E4991B-300
1 MHz to 3 GHz Impedance Analyzer

---
7E4991B-300,001,002,007,010,1E5,019
Keysight Technologies E4991B-300,001,002,007,010,1E5,019
1 MHz to 3 GHz Impedance Analyzer w/ Opts. 001, 002, 007, 010, 1E5, 019

---
  Please select the Condition of the item
Keysight E4991B Product Overview
( own it? please share by Add Your Own Review! )

Key Features & Specifications

  • Three frequency options: 1 MHz to 500 MHz/1 GHz/3 GHz, upgradable
  • ±0.65% basic accuracy and 120 m? to 52 k? impedance range (10% measurement accuracy range)
  • Measurement parameters: |Z|, |Y|, θ, R, X, G, B, L, C, D, Q, |Γ|, Γx, Γy, θΓ, Vac, Iac, Vdc1, Idc1 (1. Option 001 is required)
  • Built-in DC bias (Option 001): 0 V to ±40 V, 0 A to ±100 mA
  • 4-channel & 4-trace on 10.4 inch color LCD with touch screen
  • Data analysis function: Equivalent circuit analysis, limit line test
  • Dielectric/magnetic material measurement (Option 002): |εr|, εr', εr'', tanδ(ε), |μr|, μr', μr'', tanδ(μ)
  • Temperature characteristics measurement (Option 007) and reliable on–wafer measurement (Option 010) capabilities

Description

The E4991B Impedance Analyzer has a frequency range of 1 MHz to 3 GHz. The E4991B provides 0.65% basic accuracy over a wide impedance range with a 40 V built-in DC bias source (Option 001). The equivalent circuit analysis function supports seven different multi-parameter models and helps you to simulate your own equivalent parameter values of components.

Three frequency options (1 MHz to 500 MHz/1 GHz/3 GHz) and frequency upgrades allow you to choose the most appropriate option with the latest amount of investment.

Material measurement options provide temperature characteristics analysis capability (Option 007) and direct read function of permittivity and permeability (Option 002).

Probe station connection kit (Option 010) offers an accurate on-wafer or micro-component impedance measurement solution up to 3 GHz.

The E4991B supports a wide variety of test accessories that designed to make measurements simple and reliable.

Whether you are in R&D, QA or inspection, the E4991B is an ideal solution for characterizing and evaluating electronic components, semiconductor devices and materials.

Application Example:

  • Passive components: Impedance measurement of chip components such as capacitors, inductors, ferrite beads, resistors, or crystal/ceramic resonators.
  • Semiconductor components: C-V characteristics analysis and equivalent series resistance measurement of varactor diodes.
  • Dielectric material: Permittivity and loss tangent evaluation of plastics, ceramics, and printed circuit boards.
  • Magnetic material: Permeability and loss tangent evaluation of ferrite, amorphous and other magnetic materials.

More details on Keysight website
