86100C Digital Communications Analyzer modes:

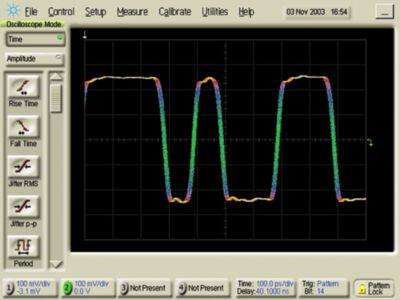

• Oscilloscope with bandwidth in excess of 80 GHz, ensuring the most accurate waveform measurements

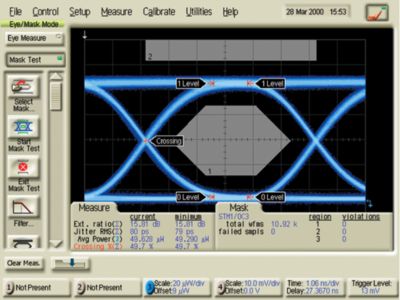

• Eye diagram analyzer for both optical and electrical transmitter compliance testing to >40 Gb/s

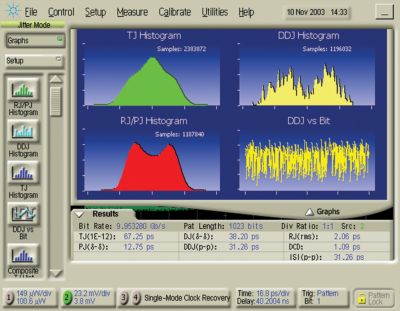

• Jitter and interference analyzer, measuring subcomponent jitter

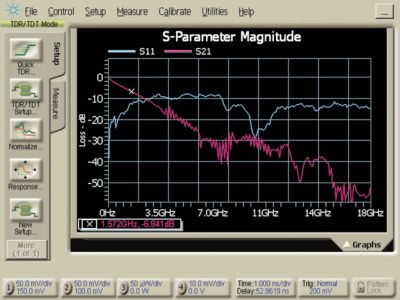

• Time domain reflectometry/transmission (TDR/TDT) for high precision impedance analysis including S-parameters

Key features

• User configurable: mainframe with slots for two modules (4 optical or electrical channels)
• Trigger bandwidth up to > 13 GHz (option 001)
• Clock recovery with adjustable loop bandwidth (see 83496B)
• Integration with MATLAB signal filtering and measurement automation software available

Backward compatible with:

• All modules from the 54750A High-Bandwidth Digitizing Oscilloscope family
• All modules from the 83480A Digital Communications Analyzer family
• All modules from the 86100A/B Digital Communications Analyzer
• 5 Reasons to Upgrade to the Keysight 86100C DCA-J

The most comprehensive multi-function analyzer for high-speed electrical and optical signals

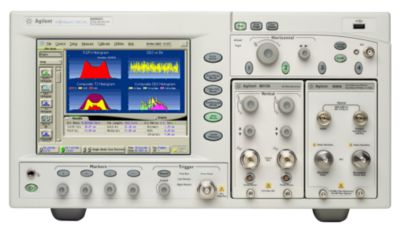

The 86100C Infiniium DCA-J combines extremely high accuracy and repeatability with outstanding ease of use to simplify characterizing signals from 50 MHz to 80 GHz. Digital designers can combine the mainframe and modules into four key instruments with industry leading signal integrity performance, including:

• A full-function oscilloscope with bandwidth in excess of 80 GHz, ensuring the most accurate waveform measurements
• A digital communications analyzer with automated eye diagram analysis for transmitter compliance testing
• The industry's most accurate jitter and interference analyzer, measuring subcomponent jitter sources with one-button ease of use
• A full-function time domain reflectometer (TDR/TDT) for high precision impedance and S-parameter analysis
