Home / Signal Generators / Rohde and Schwarz / SMB100A

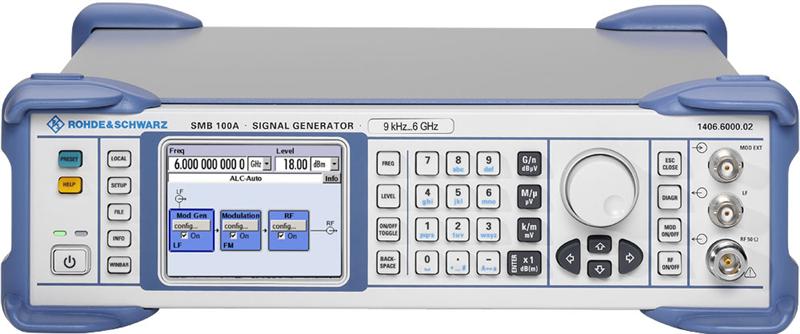

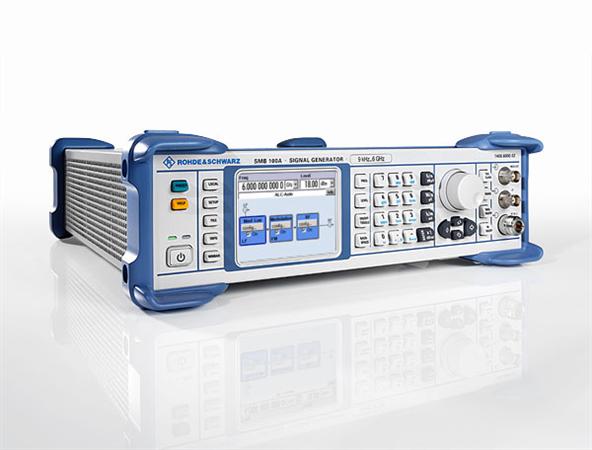

Rohde and Schwarz SMB100A Signal Generator, 9 kHz to 1.1 GHz, 2.2. GHz, 3.2 GHz, or 6 GHz / 100 kHz to 12.75 GHz, 20 GHz, 31.8 GHz, or 40 GHz Signal Generator







    •
    •
    •
    •
Manufacturer: Rohde and Schwarz Product Series: SMB Series
Base Model: SMB100A Total Listings: 19 Units
Description: Signal Generator, 9 kHz to 1.1 GHz, 2.2. GHz, 3.2 GHz, or 6 GHz / 100 kHz to 12.75 GHz, 20 GHz, 31.8 GHz, or 40 GHz Signal Generator
Data Sheet PDF: Download SMB100A Data Sheet
Average New SMB100A Price: Get Quote
Average Used SMB100A Price: $14,585
Estimated Rental Rate :
Average Lease Rate : $816 / month ** lease to own
SMB100A Calibration Price: Get Quote
* Rates depend on unit configuration, duration of the rental, and inventory levels and will vary from TestUnlimited estimates. Rental Tips
**Lease rate estimates are based on "A" credit rating, 60-month term. Unit configuration and inventory levels will cause the rate to vary from the estimate above. Benefits of Leasing
Quote Now !













Add message to dealer?



Quote SMB100A Now !

AVAILABLE INVENTORY

PRODUCT OPTIONS

PRODUCT SPECIFICATIONS

PRODUCT OVERVIEW

VIDEO & LITERATURES

USER REVIEWS

FORUM

GET QUOTE
Rohde and Schwarz SMB100A Inventory Listings and Pricings
Filter by:         APPLY FILTER

  PRODUCTRESELLERLIST PRICENEW PRICEUSED PRICE
35SMB100A-40-OP01
Rohde and Schwarz SMB100A-40-OP01
Rohde & Schwarz SMB100A Signal Generator

--$39,000
48SMB100A-20
Rohde and Schwarz SMB100A-20
100kHz-20GHz Signal Generator
 (1)
$31,830-$24,635 23% off!
35SMB100A-6-B1
Rohde and Schwarz SMB100A-6-B1
Rohde & Schwarz SMB100A Signal Generator - 6 GHz ROHSMB100A-6-B1 USED

--$8,385
48SMB100A-3
Rohde and Schwarz SMB100A-3
9kHz-3.2GHz Signal generator
 (1)
$11,995-$6,919 42% off!
23SMB100A
Rohde and Schwarz SMB100A
Rohde & Schwarz SMB100A RF and Microwave Signal Generator, up to 40 GHz (option dependent)
 (2)
---
481RS-SMB100A-20/B1H/B25/B31
Rohde and Schwarz RS-SMB100A-20/B1H/B25/B31
100kHz-20GHz Signal Generator/B1H-OCXO high performance/B25-Harmonic filter/B31-High output power

$37,365-$24,635 34% off!
481SMB100A-20/B1H/B25/B31
Rohde and Schwarz SMB100A-20/B1H/B25/B31
100kHz-20GHz Signal Generator/B1H-OCXO high performance/B25-Harmonic filter/B31-High output power

$37,365-$24,635 34% off!
324SMB100A
Rohde and Schwarz SMB100A
Rohde & Schwarz SMB100A 9 kHz - 12.75 GHz Signal Generator w/ Options B1, B112L

--$19,950
144SMB100A-B1-B106
Rohde and Schwarz SMB100A-B1-B106
RF Signal Generator to 9kHz to 6GHz B1=OCXO Reference Oscillator B106=RF Path 9 kHz to 6 GHz
 (2)
--$18,510
144SMB100A-B106
Rohde and Schwarz SMB100A-B106
RF Signal Generator to 9kHz to 6GHz B106=RF Path 9 kHz to 6 GHz
 (2)
--$16,295
496SMB100A
Rohde and Schwarz SMB100A
Rohde Schwarz SMB100A 9 kHz - 3.2 GHz Signal Generator w/ Opts B1H/B37/K22/B103

--$12,500
485SMB100A
Rohde and Schwarz SMB100A

--$9,750
493SMB100A
Rohde and Schwarz SMB100A
Signal Generator, 9 kHz to 3.2 GHz

--$7,345
481RS-SMB100A-3/K22/K23
Rohde and Schwarz RS-SMB100A-3/K22/K23
9kHz-3.2GHz Signal generator/K22-Pulse Modulator/K23-Pulse Generator

$11,995-$6,919 42% off!
481SMB100A-3/K22/K23
Rohde and Schwarz SMB100A-3/K22/K23
9kHz-3.2GHz Signal generator/K22-Pulse Modulator/K23-Pulse Generator

$11,995-$6,919 42% off!
481SMB100A-B103
Rohde and Schwarz SMB100A-B103
Signal Generator- 9 kHz to 3.2 GHz

--$5,950
481SMB100A-B101
Rohde and Schwarz SMB100A-B101
Signal Generator- 9 kHz to 3.2 GHz

--$4,295
7SMB100A
Rohde and Schwarz SMB100A
9kHz - 6GHz Signal Generator, >18 dBm

---
7SMB100A-B106,K22
Rohde and Schwarz SMB100A-B106,K22
9kHz - 6GHz Signal Generator, w/ Opt. K22 Pulse Modulation

---
  Please select the Condition of the item
✖
Rohde and Schwarz SMB100A Specifications
Frequency Range9 kHz to 40 GHz
Output Range-120 dBm to 19 dBm
Type2.92 mm Female
Analog or VectorAnalog
Similar Products
SMW200A
ROHDE AND SCHWARZ
SMW200A (SMW200A)
Signal Generator, 100 kHz to 3 GHz, 6 GHz, 12.75 GHz, 20 GHz, 31.8 GHz, or 40 GHz
Rohde and Schwarz SMW200A
N5183A
KEYSIGHT
N5183A (N5183A)
MXG Microwave Analog Signal Generator, 100 kHz to 40 GHz
Keysight N5183A
83640B
KEYSIGHT
83640B (83640B)
Synthesized Swept-Signal Generator, 0.01 - 40 GHz
Keysight 83640B
MG3694C
ANRITSU
MG3694C (MG3694C)
Signal Generator, 2 - 40 GHz
Anritsu MG3694C
Rohde and Schwarz SMB100A Product Overview
( own it? please share by Add Your Own Review! )
Frequency
Frequency range R&S®SMB-B101 9 kHz to 1.1 GHz
  R&S®SMB-B102 9 kHz to 2.2 GHz
  R&S®SMB-B103 9 kHz to 3.2 GHz
  R&S®SMB-B106 9 kHz to 6 GHz
Setting time SCPI mode
List mode		 <3 ms, typ. 1.6 ms
<1 ms
Level
Maximum output power f = 1 MHz to 6 GHz >+18 dBm
up to +25 dBm in Overrange mode
Level uncertainty f = 200 kHz to 3 GHz <0.5 dB
Setting time SCPI mode
List mode		 <2.5 ms, typ. 1.2 ms
<1 ms
Back-feed f = 1 MHz to 1 GHz
f = 1 GHz to 2 GHz
f = 2 GHz to 6 GHz		 50 W / 50 V
25 W / 50 V
10 W / 50 V
Spectral purity
Harmonics level = 8 dBm, f > 1 MHz <-30 dBc
Nonharmonics carrier offset > 10 kHz, f = 1500 MHz <–70 dBc (typ. –85 dBc)
SSB phase noise f = 1 GHz
carrier offset = 20 kHz
1 Hz measurement bandwidth		 <–122 dBc (typ. –128 dBc)
Wideband noise level > 5 dBm
carrier offset >10 MHz
1 Hz measurement bandwidth		 <–142 dBc (typ. –152 dBc)
Supported modulation modes
AM   standard
AM depth   0 to 100 %
FM/fM   standard
Maximum FM deviation f > 3 GHz 16 MHz
Maximum fM deviation f > 3 GHz 160 rad
Pulse   optional (R&S®SMB-K22 pulse modulator)
Rise/fall time   <20 ns, typ. 10 ns
Minimum pulse width using the optional pulse generator
(R&S®SMB-K23)		 20 ns
On/off ratio   >80 dB

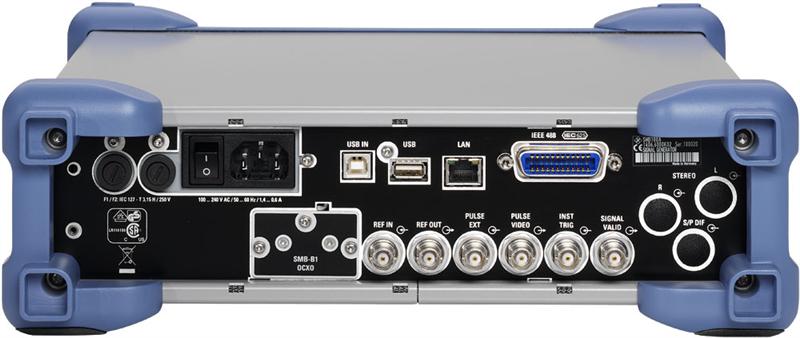

Connectivity
Remote control   IEC/IEEE bus
Ethernet (TCP/IP)
USB
Peripherals   USB
More details on Rohde and Schwarz website
