Key Facts
- High-precision measurement of DME and TACAN systems on the ground and in the air (in line with ICAO Doc. 8071,ICAO Annex 10, STANAG 5034 and MIL-STD-291C)
- Total peak level deviation < 1 dB
- Receiver aquisition sensitivity –97 dBm
- 0.01 NM distance measurement uncertainty down to –80 dBm
- 0.2° TACAN bearing deviation for input levels ≥ –80 dBm
- Detailed automated pulse shape analysis
- Multi-DME mode for measuring up to ten DME stations quasi-simultaneously, i.e. within 50 ms (R&S®EDS-K5)
- Synchronization via GPS, trigger and remote interfaces
Features & Benefits
Measurement functions for regular verification of pulsed navigation signals
- High-precision distance and level measurements on DME ground stations
- Accurate analysis of military TACAN stations
- High dynamic range of 105 dB
- Detailed analysis in line with ICAO requirements, STANAG and MIL-STD
Expanded functionality and adaptation using hardware and software options
- Precise distance measurements on the ground and in the air
High-performance multi-DME mode for measuring up to ten DME stations (R&S®EDS-K5) - Simultaneous measurement of two different signals using an additional RX unit (R&S®EDS-B1)
- Low-power interrogator for ground measurements with variable output power (R&S®EDS-B2)
- Flight inspection with integrated high-power interrogator (R&S®EDS-B4)
- Modulation and signal analysis of TACAN ground stations (R&S®EDS-K1)
- Detailed pulse shape analysis on DME systems (R&S®EDS-K2)
- GPS-based measurements (R&S®EDS-K3)
User-friendly design and application-specific extras
- Compact, robust design for stationary and mobile applications

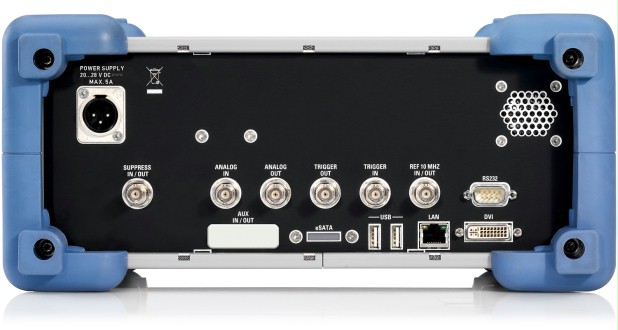

Remote control via LAN interface - Easy measurement data transfer via USB data logger
- Various synchronization capabilities for integration into existing flight inspection systems
- Maintenance, repair and service
Brief Description

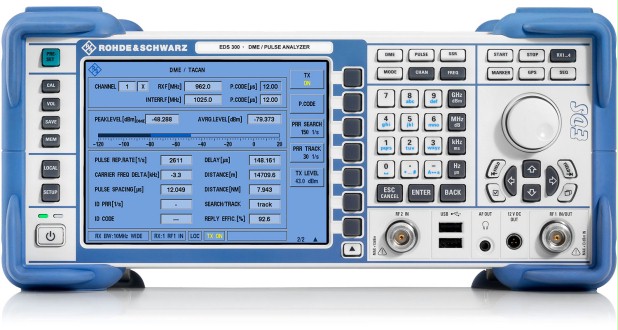

The R&S®EDS300 is a level and modulation analyzer designed for installing and maintaining pulsed, terrestrial navigation services. Its high sensitivity and compact design make the R&S®EDS300 ideal for conducting field measurements on the ground and in the air. The DME/pulse analyzer also features trigger and synchronization capabilities for easy integration into test vehicles and flight inspection systems.
