Key Facts

• Frequency range 9 kHz to 3.3 GHz (5 MHz to 3.3 GHz with I/Q modulation)
• I/Q modulator with 100 MHz RF bandwidth and excellent vector accuracy
• SSB phase noise typ. -128 dBc (f=1 GHz, 20 kHz carrier offset, 1 Hz measurement bandwidth)
• Setting times <10 ms
• High level accuracy <0.5 dB
• High reliability through electronic attenuator
• Digital frequency and level sweep
• AM/FM/φM
• Optional pulse modulator with integrated pulse generator
• Optional stereo coder with analog and digital audio inputs
• Three-year calibration cycle

Brief Description

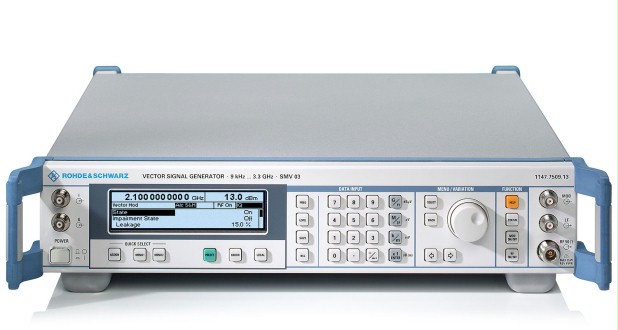

The Vector Signal Generator R&S®SMV03 is based on the successful analog Signal Generator R&S®SML03 and features the same excellent technical characteristics.
