Key facts

• Frequency range from 8  kHz to 3 GHz, 6 GHz, 12.75 GHz or 20 GHz
• Excellent SSB phase noise of –152 dBc (typ.) at 1 GHz and –132 dBc (typ.) at 10 GHz, each at 20 kHz offset
• Virtually no wideband noise –162 dBc (meas.) at 10 GHz and an offset of 30 MHz
• Ultra high output powerUp to 38 dBm with the 6 GHz instrument
• Up to 32 dBm in the microwave frequency range with the 20 GHz instrument
• Exceptionally low harmonics
• State-of-the-art GUI with touchscreen

Features and Benefits

• First-class devices thanks to first-class signals
• Very high output power without compromise
• User friendly in every detail
• R&S®LegacyPro: refresh your technology

Brief description

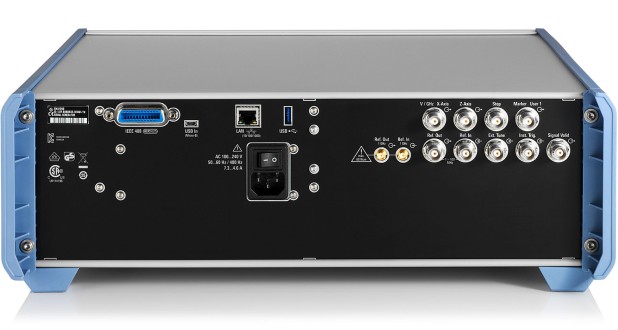

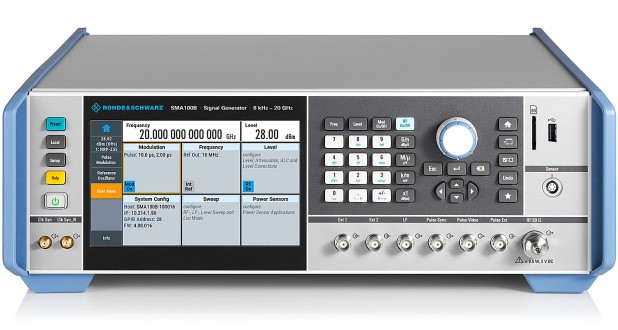

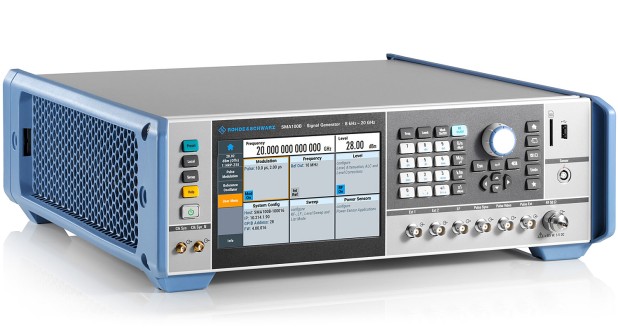

The R&S®SMA100B RF and microwave signal generator delivers maximum performance without compromise. It provides purest output signals while maintaining the highest output power level, far outpacing the competition. As the world's leading signal generator, it can handle the most demanding component, module and system T&M tasks in the RF semiconductor, wireless communications and aerospace and defense industries.
