Key Features

• Up to 4 GHz True Analog Bandwidth and Down to 72 ps Rise Time
• >400,000 wfms/s Waveform Capture Rate
• 20 GS/s Maximum Real-time Sample Rate
• Built-in Compliance Mask Tests with up to 2.5 Gb/s Optical and Electrical Data Stream Rates
  Integrated Optical Reference Receiver
• Integrated Hardware Clock Recovery
• Up to 64 MB Record Length with MultiView Zoom™
• 64-Bit Serial Trigger for Isolation of Pattern-dependent Effects
• Complete Eye Pattern Measurements Suite Including Extinction Ratio, Q-factor, Eye Height/Width, Jitter and Noise
• Waveform Database Acquisition Technology for Accurate Parametric Measurements on Eye Patterns
• TekConnect® Interface for High Fidelity Connection
• OpenChoice® with Microsoft Windows 2000

Description

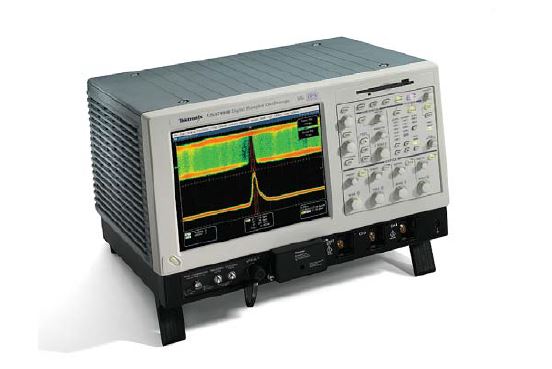

Versatile, High-performance Real-time Digital Oscilloscopes Dedicated to Rapid Design Analysis and Verification of Communications Signals Up To 2.5 Gb/s Rates (OC-48/STM-16 or Fibre Channel FC2125).
