Features and Benefits

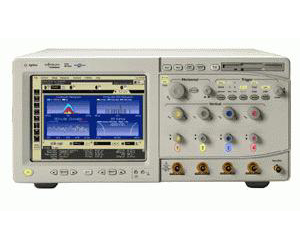

Keysight (Agilent) DSO80804A Infiniium 80000 Series High Performance Oscilloscope: 8 GHz

• 8 GHz bandwidth real-time oscilloscope with up to 40 GSa/s sample rate
• Up to 2 Mpts MegaZoom deep memory at 40 GSa/s sample rates and 64 Mpts MegaZoom deep memory at 4 GSa/s, after-purchase memory upgrade available
• InfiniiMax II probing system
• Trigger jitter less than 500 fs rms
• Electronic attenuators eliminate the reliability and ESD discharge concerns associated with mechanical attenuator relays
• Lowest vertical noise floor and lowest jitter measurement floor in the industry
• Unrivaled InfiniiMax probing accessories support browsing, solder-in, socket use, and SMA use models all at 12 GHz or greater bandwith

Description

Infiniium 80000 Series Oscilloscopes 13, 12, 10, and 8 GHz Oscilloscope Measurement Systems

Oscilloscope and probing system with bandwidths up to 13 GHz and a maximum sample rate of 40 GSa/s is required to meet the performance needs of engineers designing state of the art high-speed serial communication links and other ultra-high-speed electronic systems.

Modern industry bus standards such as Fibre Channel, Fully Buffered DIMM, Serial ATA, Serial Attached SCSI, and PCI-Express have performance points in the 4 to 8.5 Gb/s range. Proprietary high-speed serial buses can also have clock rates in the 4 to 8.5 Gb/s range as well as rise times faster than 50 ps. Scopes with bandwidths of 8, 10, 12, or 13 GHz are required to capture the frequency harmonics of such high-speed signals and make accurate and repeatable measurements on them.

Agilent’s award-winning InfiniiMax probing system set the standard for probing systems and the rest of the oscilloscope industry is now following this trend-setting architecture. Agilent’s InfiniiMax II probing system takes this innovation to an unmatched level of performance and usability

Application Software

• E2681A EZJIT Jitter Analysis Software Option
• N5400A EZJIT Plus Jitter Analysis Software Option
• E2688A High Speed Serial Data Analysis Clock Recovery Software
• Agilent Infiniium Oscilloscopes and 89601A Vector Signal Analysis Software
• N5392A Ethernet Electrical Performance Validation and Compliance Software
• N5393A PCI Express Electrical Performance Validation and Compliance Software
• N5394A DVI Electrical Performance Validation and Compliance Software for 54850
• Serial ATA Signal Quality Compliance Test
• E2683A USB 2.0 Compliance Test Option
• E2697A High Impedance Adapter (includes 500 MHz passive probe)
• E2699A My Infiniium Integration Package Option

1168A InfiniiMax II Probe Specifications

• Bandwidth: 10 GHz
• Dynamic Range: 3.3 V
• DC Offset Range: ± 16 V
• Maximum Voltage: ± 30 V
• Differential Input R: 50 k ohm.
• Differential Input C: 0.21 pF.
• Single Ended Input R: 25 k ohm.
• Single Ended Input C: 0.35 pF
