Key Features & Specifications

Performance

• 1 Hz to 5 MHz (including 200 Hz, 9 kHz, 120 kHz, 1 MHz EMI BW)
• +12.5 dBm TOI
• = 150 dBm displayed average noise level (DANL)
• Optional (UKB) for lower frequency of 100 Hz

Features

• Log sweep
• Built-in preamplifier
• Optional tracking generator
• Options included standard are: A4H, AYQ, B72, 060, 1DR, 1DS

Software

• Compatible with E7415A EMI Software
• Compatible with BenchLink Web Remote Software

Description

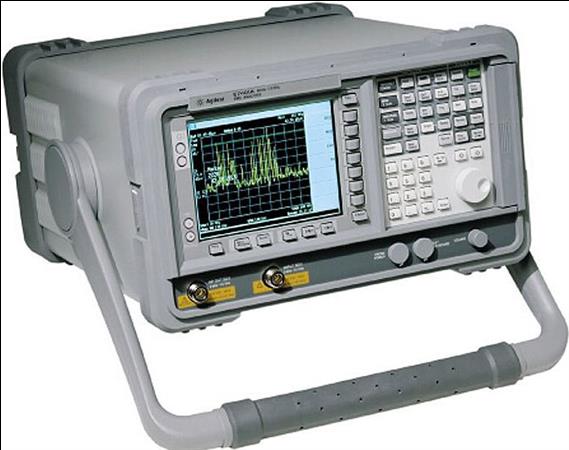

Early evaluation of your design's EMI performance is essential for a successful product. The E7405A EMC standard analyzer provides the capabilities you need in an analyzer to make in-house EMI precompliance testing a reality.

The EMC standard analyzer offers you the best value with more productivity options built-in, and guarantees the fast delivery.

Radiated emissions

When combined with a broadband antenna, the E7405A provides the capabilities to check for radiated emissions coming from your DUT. This is best done in an area that is free from reflective objects such as an open area or EMI chamber.

Conducted emissions

Test for noise or interference placed on power or data lines by coupling the E7405A instrument to the power or data line through a line impedance stabilization network (LISN) device or absorbing clamp.

Diagnostics and problem isolation

If you have an emissions problem, use the E7405A with a close field probe to isolate and diagnose the source of the problem.

• 11940A Close Field Probe, 30 MHz to 1 GHz
• 11941A Close Field Probe, 9 kHz to 30 MHz
• The E7405A can be purchased separately or as part of the 84115EM precompliance system
