Key Features and Functions

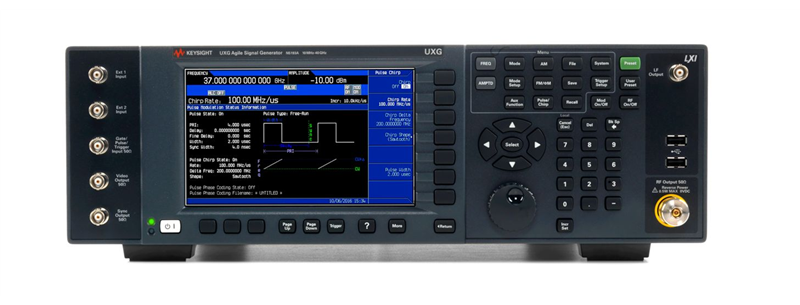

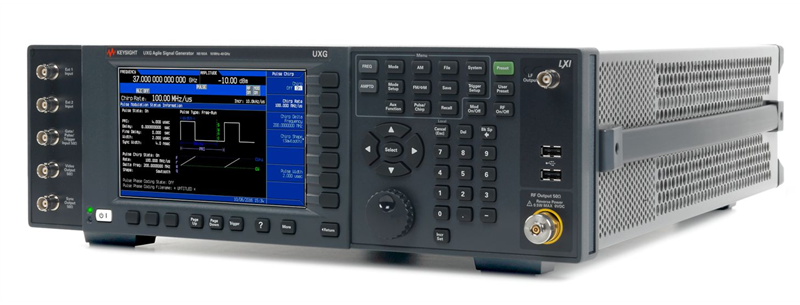

N5193A UXG X-Series Agile Signal Generator, 10 MHz to 40 GHz
- Get closer to reality: simulate increasingly complex signal environments for radar, EW & antenna-test
- Test sooner & increase confidence in EW systems by generating signal simulations when you need them: the UXG is a scalable threat simulator
- Use pulse descriptor words (PDWs) to generate long pulse trains & individually control pulse characteristics
- Accurately simulate multi-threat environments: 180-ns PDW update rate, chirps 10 to 25% of carrier frequency, pulses as narrow as 10 ns
- 10 MHz to 40 GHz frequency range
- 180 ns frequency, amplitude, and phase update rate
- 10 ns minimum pulse width - 90 dB pulse on/off ratio
- Linear chirp width 10 to 25% of carrier frequency
Description
The UXG agile signal generator delivers unmatched performance in areas such as switching speed and phase control. To support realistic multi-threat scenarios, the UXG can switch frequency in as little as 370 ns. This is made possible by direct digital synthesis (DDS) technology and a Keysight proprietary digital-to-analog converter (DAC).
Lower cost-of-ownership The UXG has passed rigorous environmental testing including temperature, humidity, and shock.
