Key Features & Specifications

Tektronix AWG710 Arbitrary Waveform Generator

• Sample Rate to 4.0 GS/s Sample Rate, Simulates Real-world Signals up to 2.0 GHz
• 2 Markers with 1.6 psRMS Jitter
• 16 M or 32 M Point Record Length Provide Longer Serial or Rotational Media Data Streams
• Record Length to 8 M Words for Longest Signal Playtimes
• Analog Bandwidth to 2 GHz (Option 02, Calculated Base on Rise Time) Provides the Highest Signal Fidelity of All High-speed AWGs
• EZ Function Generator Mode Allows Quick Creation and Edit of Sine, Square, Triangle, Ramp, Pulse and DC Waveforms
• Waveform Quick Editor with 300 fs Edge Timing Resolution Delivers Output Edge Control with Near Real-time Precision
• Real-time Sequencing Creates Infinite Waveform Loops, Jumps, Patterns and Conditional Branches
• GPIB and LAN (10/100 Base-T) Interfaces

Applications

• Disk Drive Read/Write Design and Test
• Communications Design and Test
  • Arbitrary IF Baseband Signals
  • Standard Waveforms for Communications
• Pulse Generation
  • High-speed, Low-jitter Data and Clock Source
• Mixed Signal Design and Test
• Real-world Simulations
  • Corruption and Enhancement of ideal Waveforms
  • Timing and Amplitude Signal Impairments
  • Waveforms Imported from MathCad, MATLAB, Excel and Others

Description

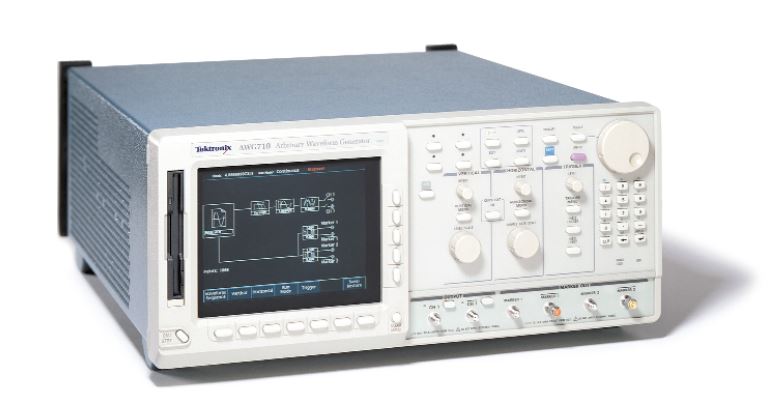

The AWG710 is a 4GS/s 2GHz Arbitrary Waveform Generator. The AWG710B Arbitrary Waveform Generator Delivers World-class Signal Fidelity at 4.2 GS/s to Solve Ever-increasing Measurement Challenges. New two box synchronous operation function supports 2ch 4.2GS/s solution. The AWG710B combines world-class signal fidelity with ultra high-speed mixed signal simulation, a powerful sequencing capability and graphical user interface with flexible waveform editor, to solve the toughest measurement challenges in the disk drive, communications and semiconductor design/test industries. The built-in signal applications enable you to easily create standard waveforms for disk drive read channels, communications up to 4.2Gb/s. Also included is AXW100 ArbExpress waveform creation and editing software. This software allows for easy waveform import from oscilloscopes or basic, advanced, and math waveform creation and edit capabilities.
