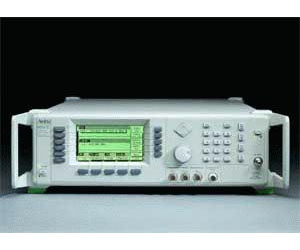

Anritsu 68177C Synthesized Signal Generator, 10 MHz to 50 GHz
Features and Specifications
- Broad frequency coverage including 0.1 Hz to 65 GHz in a single coax output
- Ultra-low SSB phase noise and spurious
- +17 dBm guaranteed leveled power to 20 GHz
- 0.1 Hz optional frequency resolution
- <5 ms switching time for <100 MHz sweep steps
- Digital frequency sweep and digital power sweep
- Wide dynamic range with accurate output levels
- Intuitive, menu-driven front panel
- Frequency Range Max. 50.00GHz
- Freq. Resolution 100.0mHz
- Output Power +12 dBm to -15 dBm (-20 dBm typical) ;with an attenuator -120 dBm
- Modulation AM, FM
Description
The Anritsu 68C/69B series are your best choice for A.T.E. applications. They pack the highest performance available in a single 13.3 cm package to minimize rack space. High output power assures adequate signal strength to the device under test even after A.T.E. switching and cabling losses.
Accurately leveled output power to –120 dBm in 0.01 dB steps facilitates receiver sensitivity measurements. Fast 5 ms switching time maximizes system throughput. Internal list mode frees the A.T.E. controller to perform measurement analysis tasks. Optional SCPI programmability and free application drivers, including the IVICOM driver and National Instruments LabView® drivers, save you time and money in code generation and maintenance.
The 68100C series are your ideal component test signal sources. Analyze key communications, electronic warfare and RADAR components at baseband, IF and carrier frequencies to 65 GHz. Analyze extremely high-Q components with the optional 0.1 Hz frequency resolution. Step sweep mode delivers synthesized frequency accuracy, or choose analog sweep for the fastest possible sweep times.
