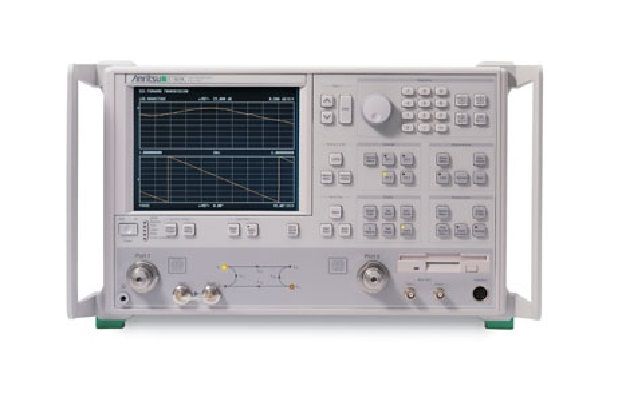

Anritsu 37369C Vector Network Analyzer, 40MHz to 40GHz
Specifications and Features
- Fast Sweeping Synthesized Source
- Auto Reversing Test Set
- Solid-State Transfer Switch
- Four Independent Display Channels
- Multiple Source Control of Two External Sources
- Four Channel Receiver
- Internal Hard and Floppy Disk Drives
- LRL/LRM Calibration
- Adapter Removal Calibrations
- Fast Measurement Throughput via GPIB
- Built-In AutoCal® Control
Description
The Anritsu 37369C Network Analyzer is part of the Anritsu Lightning series of Vector Network Analyzers (VNAs). Designed to make fast and accurate S-parameter measurements of active and passive devices across the 40 MHz to 40GHz range. The Anritsu 37369C Network Analyzer integrates a synthesized source, S-parameter test set and tuned receiver into a single compact package that is ideal for bench-top testing. The Anritsu 37369C is also configured as a Direct-Access Receiver for antenna, frequency conversion, and multiple output device measurements. This network analyzer consists of a synthesized source and tuned receiver in a single compact unit, with direct access provided to all four receiver samplers via the front panel. The 37100C offers the ultimate flexibility to meet most receiver measurement needs, while maintaining the ability to measure all four S-parameters with the addition of a reflectometer setup at the front end of the receiver. High throughput measurements are achieved through the use of fast, 12-term error corrected sweeps, fast GPIB data transfers and an intuitive user interface. All measurement results are displayed on a large LCD color display or on an external VGA monitor.
