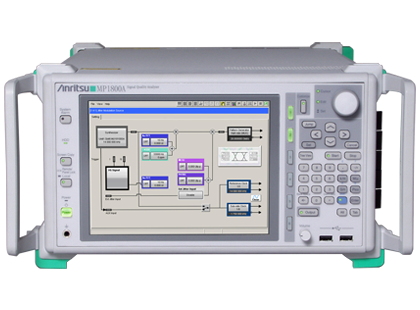

Anritsu MP1800A Signal Quality Analyzer, 100MB to 12.5 GB/s

 Key Specifications and Features

• Highest quality waveforms including lowest intrinsic jitter
• Expandable slot configurations for serial and parallel applications
• Configurations from 100 Mbit/s to full 100 Gbit/s of data output from a single chassis
• Optical (SFP & XFP) and electrical interfaces availability
• Differential electrical interfaces
• 50 Gbps BER measurement using 4CH PPG/ED when used with Anritsu multiplexer/demultiplexer
• Jitter Modulation up to 25 Gbit/s
• 4/6 slot chassis providing flexibility for synthesizer, PPG, ED, mux/demux and optical
• Interface modules
• Windows XP GUI plus remote control over GPIB and Ethernet
• Easy to operate at high-security sites such as Data Centers because no built-in hard disk on MT1810 chassis
• Eye Margin
• Q Measurement
• Bit Error Analysis using ISI
• Eye Diagram
• Bathtub
• Jitter generation

Description

The MP1800 Signal Quality Analyzer (SQA) is a measuring instrument that provides bit error rate and quality analysis for serial digital signals directly from 100 Mbit/s to 28 Gbit/s with configurations that support 50 Gbit/s. The modular design of the MP1800A Signal Quality Analyzer (SQA) series offers customers a flexible cost-effective solution for performing measurements at the ideal bit error rate.

The MP1800 SQA provides Pulse Pattern Generator (PPG) and Error Detectors (ED) in a single chassis. It allows for multi-channel support for parallel testing. Complicated searching for input thresholds or phase adjustments is simplified with the touch of a single key. It is ideal for research and development of 100 GE, optical modulators, high-speed logic, ICs, digital systems, and PON.
