Features and Benefits

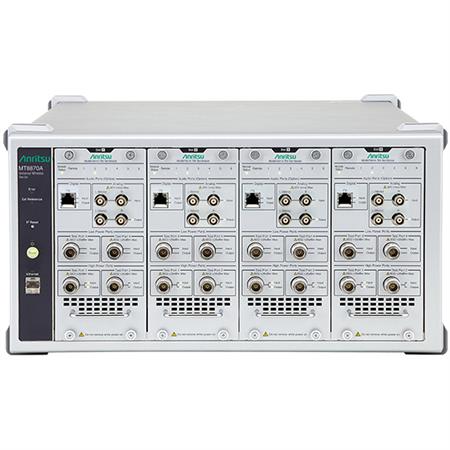

Anritsu Universal Wireless Test Set MT8870A
- Designed for high volume smartphones, tablets Automotive, IoT devices and wireless modules manufacturing test applications
- Supports WLAN, cellular, Bluetooth, and other connectivity wireless applications
- 4 high performance modules in one small chassis
- Supports simultaneous measurement of multiple wireless standards
- One license enables the associated capabilities on all installed modules
TRX Test Module MU887000A/MU887001A
- Built-in signal generator and signal analyzer
- 160 MHz wide measurement bandwidth
- Wide frequency range from 10 MHz to 6 GHz
- One module supporting multiple wireless standards
- Supported standards: 5G NR sub-6GHz,
- LTE/LTE-Advanced, LTE-V2X, NB-IoT, Cat-M, W-CDMA/HSPA, TD-SCDMA, GSM/EDGE, CDAM2000/1xEV-DO,
- WLAN 802.11a/b/g/n/p(V2X)/ac/ax, Bluetooth v5.0, ZigBee, Z-Wave, FM/RDS, GPS/Galileo/GLONASS/BeiDou/QZSS, DVB-H, ISDB-T/ISDB-Tmm
- Built-in audio analyzer/audio generator
Brief Description
The MT8870A is a test instrument for mass-production of various wireless communications equipment and modules. Up to four high-performance test units can be installed in one main unit.
The Universal Wireless Test Set MT8870A has been specifically designed for the high volume manufacturing test of cellular and connectivity wireless devices and modules supporting 5G NR sub-6GHz, LTE, LTE-V2X, NB-IoT, Cat-M, V2X 802.11p, WLAN and Bluetooth etc. An MT8870A instrument mainframe can contain up to four TRX Test Modules MU887000A/01A each capable of independent control by an external PC. Each module has an integrated Vector Signal Generator and Vector Signal Analyzer to perform both transmitter and receiver RF tests. The MT8870A with the MU887000A/01A test module can be controlled by an external PC.
