Key Features & Specifications

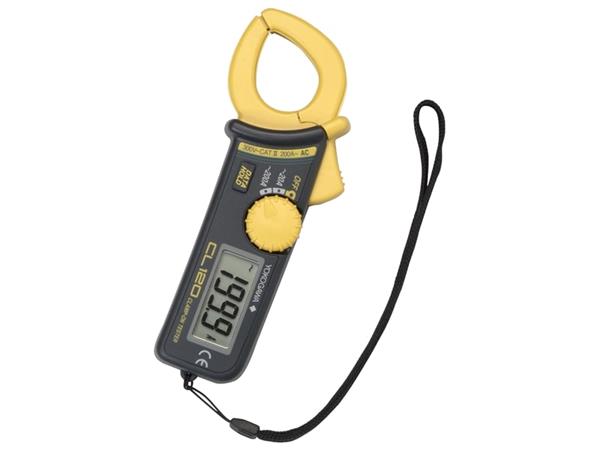

Yokogawa CL120 Mini Clamp-on Tester (200A)

Specifications

• Display (LCD, Digital Counts) 1999
• AC Current Accuracy (20A Reference) 2.0+7 (50~1kHz)
• AC Current Accuracy (200A Reference) 2.0+5(50/60Hz)
• 3.0+10(40~1kHz)
• Method of detection Mean Value
• Response Time Approx. 2 seconds
• Range Switching Manual-range
• Data hold On all range
• Operating temperature and humidity 0-40°C, 85% RH or less (no condensation)
• Influence of external magnetic field 0.8A or less at 400A/m
• Influence of conductor position ± 2% or less
• Safety Standard Conforms EN 61010-1, EN61010-2-032
• Circuit voltage 300Vrms or less
• Withstanding voltage 3.7kV AC for one minute
• Power Supply LR-44x2(3V) or SR-44x2
• Battery Life1 100 hours
• Consumed current Approx. 1mA
• Auto power-off Approx. 10 minutes
• Diameter of measurable conductor 24mm at maximum
• Dimensions Approx. 59(W)x210(H)x40(D)mm
• Weight (Approx.) 400g
• Accessories Clamp Adapter (Model 99025), Carrying Case (Model 93033), User's manual (IM CL120), Batteries
• Order Notes Each item selected MUST be ordered as a separate line item.
• Product Notes All Clamp-on Meters include Test Leads (where applicable) and a carrying case.

Description

• Exclusive model for AC current measurement with current ranges up to 200A
• 24mm in diameter of measurable conductor
• Light weight & compact design
• Mean value display
• Data hold function
• Approved for conformity to safety standards EN61010-1,
• EN61010-2-032 (CAT. Ill 300 V)
