Key Features & Specifications
Keysight M9383A PXIe Microwave Signal Generator, 1 MHz to 44 GHz
- Modular test solution for design validation that can be efficiently leveraged into manufacturing
- Flexibility to solve your immediate test needs, but upgradable for what comes next – whether that’s upgrading for frequency coverage, or a rapid shift to high volume production.
- Easily configurable to support a variety of uses, from LO and blocking applications to 5G test
Specifications
- Frequency Options 14, 20, 31.8, 44 GHz
- Performance Level ??????
- IQ Modulation BW Internal/External 1 GHz to 2 GHz
- Baseband Generator Mode, Waveform Playback
- Software-General Purpose
- AM, FM, PM
- Analog I/Q Input
- I/Q Waveform
- MATLAB
- Multitone
- Noise (AWGN)
- PSK
- Pulse
- QAM
- SystemVue
- PA pre-distortion
- Software-Cellular/Wireless Connectivity
- cdma2000®/1xEV-DO
- GSM/EDGE/Evo
- LTE/ LTE-Advanced FDD and TDD
- W-CDMA/HSPA+
- WLAN 802.11a/b/g/j/p/n/ac/ah/ax
- Custom 5G
- Pre-5G
- 5G NR
- Applications Available Yes
- Phase Noise @1 GHz (10 kHz offset) n/a
- Modular Yes
- Vector Yes
Description

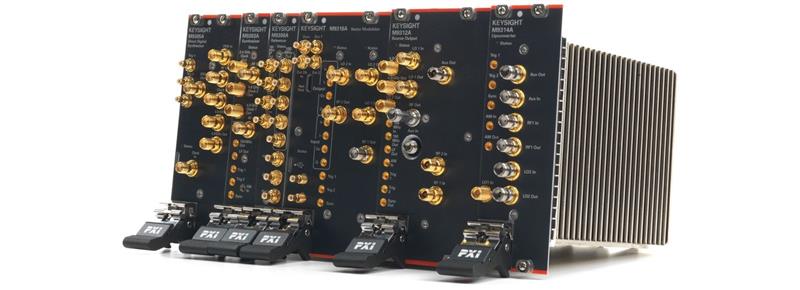

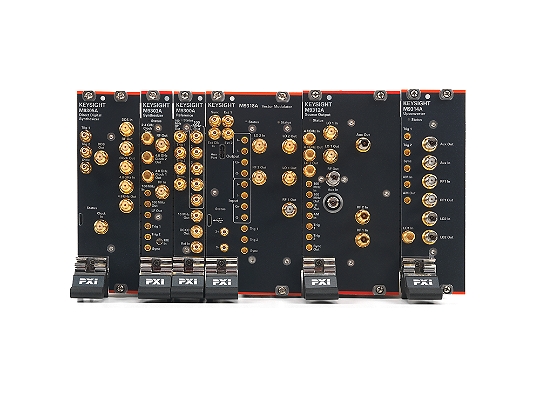

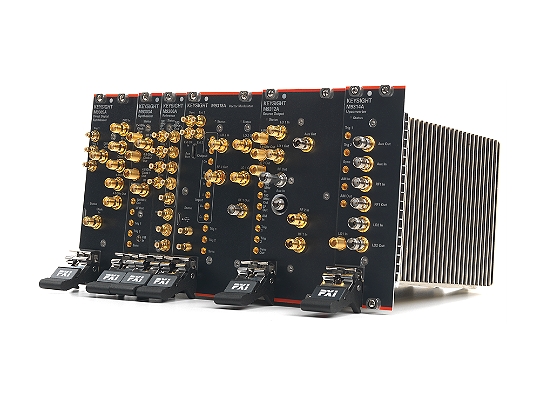

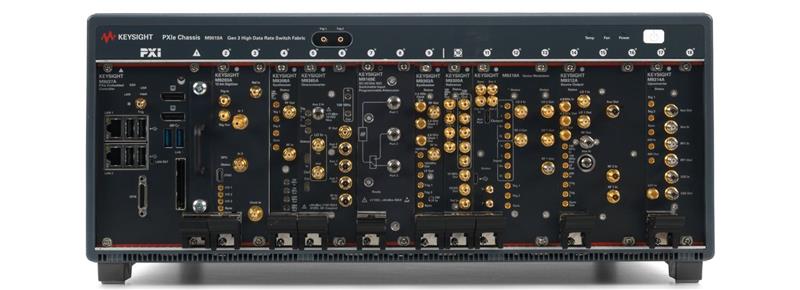

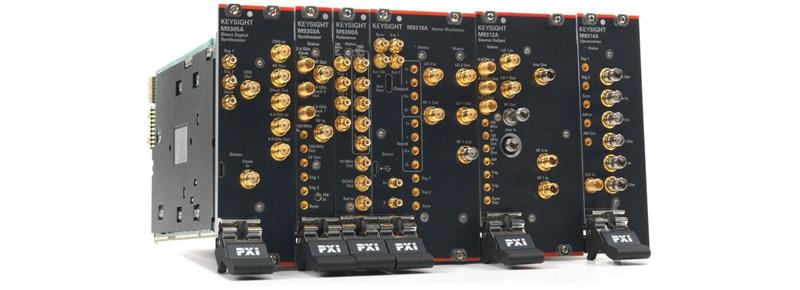

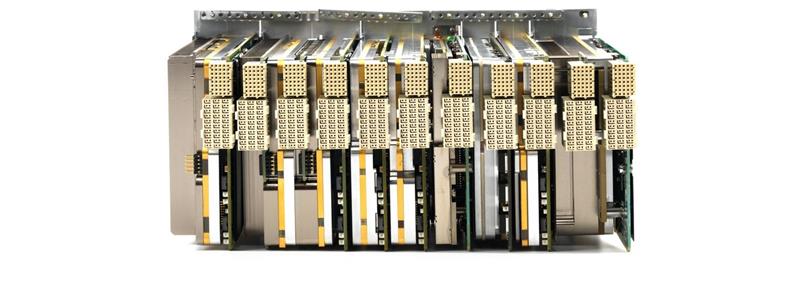

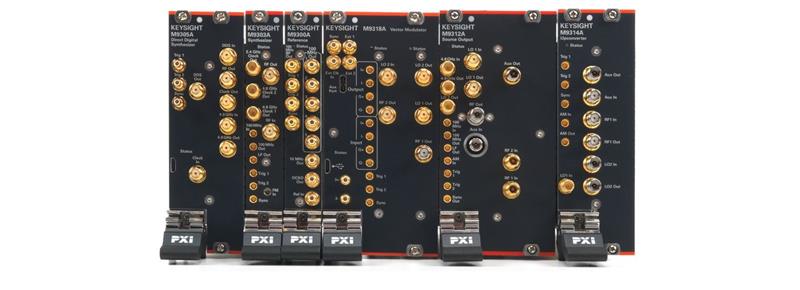

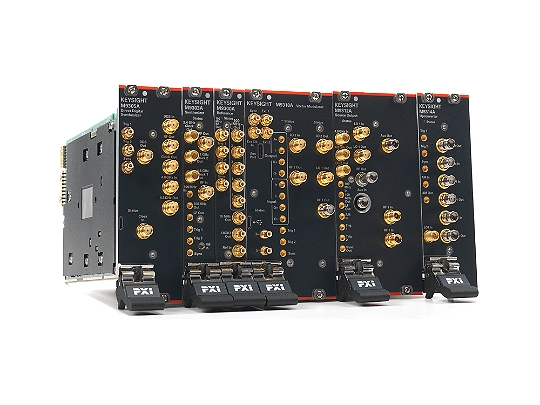

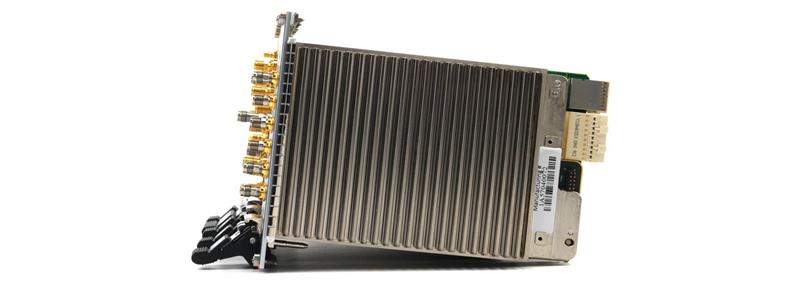

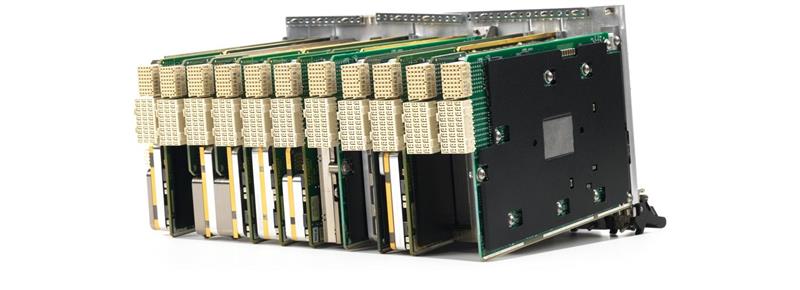

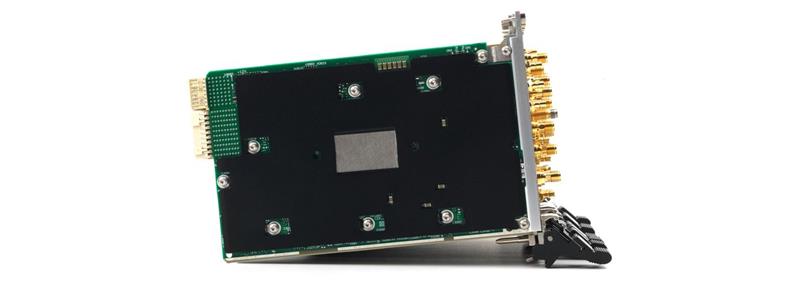

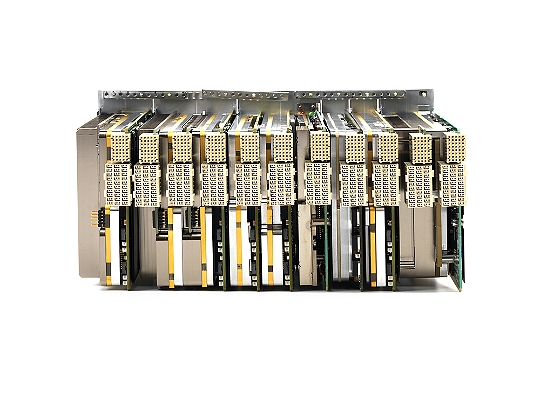

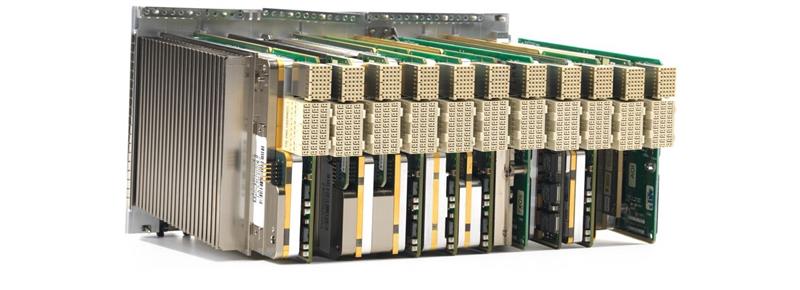

The M9383A PXIe microwave signal generator is a compact modular instrument that provides frequency coverage from 1 MHz to 44 GHz, up to 1 GHz RF modulation bandwidth
with an internal baseband generator, and over 2 GHz RF modulation bandwidth with external I/Q inputs. Based on the PXIe industry standard, the M9383A is highly configurable and expandable. The smallest configuration, a 14 GHz analog signal generator, can be used in simple LO or blocking applications, and the largest configuration, a 44 GHz vector signal generator, can be used for 5G applications. Many other configurations are possible, allowing the M9383A PXIe microwave signal generator to be customized for specific application requirements.
Frequency
M9383A-F14 Frequency Range, 1 MHz to 14 GHz
M9383A-F20 Frequency Range, 1 MHz to 20 GHz
M9383A-F32 Frequency Range, 1 MHz to 31.8 GHz
M9383A-F44 Frequency Range, 1 MHz to 44 GHz
Bandwidth
M9383A-B04 RF Modulation Bandwidth, 40 MHz for Frequency Option F14 and F20
M9383A-B16 RF Modulation Bandwidth, 160 MHz for Frequency Option F14 and F20
M9383A-A01 No Vector Modulation and Memory Capability
M9383A-B05 RF Modulation Bandwidth, 40 MHz for Frequency Option F32 and F44
M9383A-B17 RF Modulation bandwidth, 160 MHz for Frequency Option F32 and F44
M9383A-C05 RF Modulation Bandwidth, 500 MHz for Frequency Option F14 and F20
M9383A-C06 RF Modulation Bandwidth, 500 MHz for Frequency Option F32 and F44
M9383A-C10 RF Modulation Bandwidth, 1 GHz for Frequency Option F14 and F20
M9383A-C11 RF Modulation Bandwidth, 1 GHz for Frequency Option F32 and F44
