Instruments for Industry GT825-500 CW/TWT Pulse/CW Microwave Power Amplifier, 1 GHz - 8GHz, 500 Watts Amplifiers - TWT







  •
  •
Manufacturer: Instruments for Industry Product Series: GT-500
Base Model: GT825-500 Total Listings: 1 Units
Description: CW/TWT Pulse/CW Microwave Power Amplifier, 1 GHz - 8GHz, 500 Watts Amplifiers - TWT
Data Sheet PDF: Download GT825-500 Data Sheet
Average New GT825-500 Price: Get Quote
Average Used GT825-500 Price: $137,000
Estimated Rental Rate :
Get Quote
Average Lease Rate : $4,329 / month ** lease to own
GT825-500 Calibration Price: Get Quote
* Rates depend on unit configuration, duration of the rental, and inventory levels and will vary from TestUnlimited estimates. Rental Tips
**Lease rate estimates are based on "A" credit rating, 60-month term. Unit configuration and inventory levels will cause the rate to vary from the estimate above. Benefits of Leasing
Quote Now !













Add message to dealer?



Quote GT825-500 Now !

AVAILABLE INVENTORY

PRODUCT OPTIONS

PRODUCT SPECIFICATIONS

PRODUCT OVERVIEW

VIDEO & LITERATURES

USER REVIEWS

FORUM

GET QUOTE

Instruments for Industry GT825-500 Inventory Listings and Pricings
Filter by:         APPLY FILTER

  PRODUCTRESELLERLIST PRICENEW PRICEUSED PRICE
21GT825-500
Instruments For Industry GT825-500
Gridded TWT Amplifier, 2.5GHz - 8GHz, 500W

--$137,000
  Please select the Condition of the item
Instruments for Industry GT825-500 Product Overview
( own it? please share by Add Your Own Review! )

Key Features and Specifications

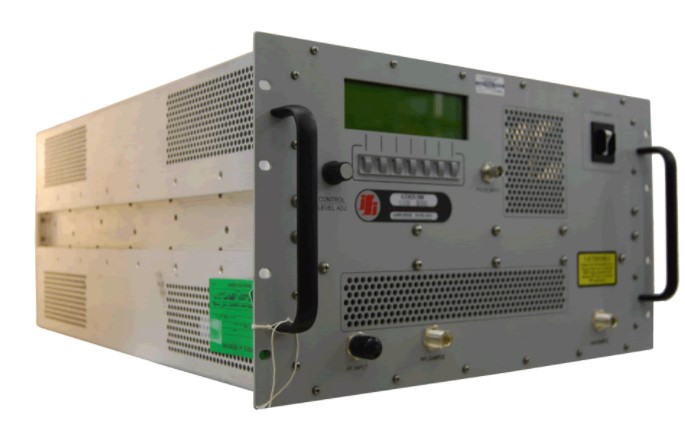

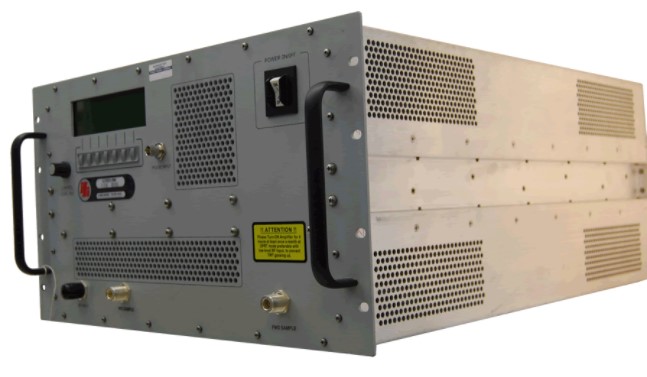

Instruments for Industry GT825-500 High Power Pulse TWT Amplifier 2.5 - 8 GHz, 500 Watt

  • Frequency Range: 2.5 GHz- 8 GHz
  • Rated Power:
    • 500 Watts, 2.5-7.5 GHz
    • 400 Watts, 7.5-8.0 GHz
  • P1dB Power (Normal): 250
  • Gain (dB Min): 57
  • Mains (kVA): 2.5
  • Weight (Pounds): 75
  • Size: 10.5"H x 19"W x 25.25"D
  • Input/Output Impedance: 50 Ohms
  • RF Input/Sample Connectors: Type N Female, Unlesse specified otherwise
  • RF Output connector: Type SC or 716 Female up to 8GHz, 8-12 GHz is WR90, 12-18 GHz is WRD750, 6.5-18 GHz is WRD650
  • Input VSWR/Output VSWR: 2.0:1/2.5:1
  • Pulse Input: BNC Femalse Front Panel (TTL into 50 ohms standard)
  • Pulse Width: Up to CW
  • PRF Range: Up to 100 KHz Standard
  • Duty Cycle: Up to CW
  • Rise and Fall Time: 25nsec nominal, 40nsec max
  • Pulse to Pulse Jitter: +/-5nsec max
  • Pulse Width Jitter (distortion):+/-5nsec max
  • Pulse Recovery Time: 150nsec Max
  • Pulse Delay: 250 nsec max,d 180 nsec typical
  • Pulse Droop: 0.5 dB/100usecs, 0.1dB/10usec
  • Power Output Stability: 0.2dB Pulse to Pulse at constant drive level & PRF
  • Pulse On/Off Ratio: 80 dB
  • Phase Stability Pulse to Pulse: +/-1 degree nominal
  • Temperature: 0 to 50 C operating, -40 to 70 C non-operating
  • Humidity: 95% without condensation
  • Altitude: 10,000 feet operating
  • Cooling System: Air cooled, self contained
  • Modulation: All types, AM, FM, Pulse
  • Configuration: Rack Mounted as specified in Model Table, or Cabinet Integrated as needed
  • Spurious Outputs: <-60 dBc nominal

Description

The IFI GT-500 Series include a full complement of RF and hardware protection systems including high VSWR, over-current and voltage protection as well as redundant thermal and airflow sensors to prevent the TWT from overheating.


It features modular construction and this concept of modular design minimizes internally produced EMI signal leakage and provides easy access for field service and rapid turnaround at depot level repair facilities.






More details on Instruments for Industry website
Instruments for Industry GT-500
