Key Features and Specifications

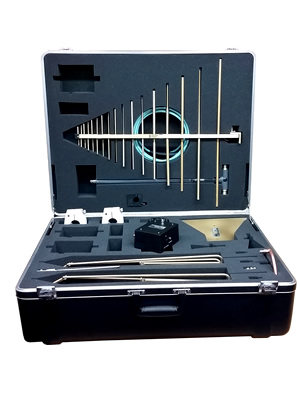

A.H. Systems AK-18G Antenna Kit for Compliance Testing, 20 Hz to 18 GHz
- 20 Hz to 18 GHz
- Individually Calibrated
- FCC, MIL-STD, VDE and TEMPEST Testing
- Rugged Construction
- Three Year Warranty
Specifications, Included equipment
- TSC-542 Transit Storage Case
- SAS-510-2 290 MHz - 2000 MHz Log Periodic Antenna
- SAS-542 20 MHz - 330 MHz Biconical Antenna
- SAS-550-1B 9 KHz - 60 MHz Active Monopole
- SAS-560 20 Hz - 2 MHz Passive Loop Antenna
- SAS-571 700 Hz - 18 GHz DRG Horn Antenna
- BCP-610 20 Hz - 20 MHz Broadband Current Probe
- BCP-611 10 KHz - 150 MHz Broadband Current Probe
- SAC-18G-3 up to 18 GHz 3 Meter Low-Loss Cable
- ADP-202 up to 18 GHz N(f) to BNC(m) Adapter
- ATU-510 Wooden Tripod
- AEH-510 Azimuth and Elevation Head
- TCC-510 Tripod Carrying Case
Dimensions: - Antenna Case Size: 28" x 23" x 10"
- Weight: 38 lb.'s
- Tripod Case Size: 46" x 8" Dia.
- Weight: 18.6 lb.'s
Description
Constantly changing for today's dynamic environment, A.H. Systems presents the proven line of Antenna Kits. Designed to meet the needs of your various testing requirements.
Each kit provides all the reliable antennas, current probes, and accessories needed to satisfy a wide array of customer requirements. Each component has a specific storage compartment in the carrying case therefore, loss and breakage are virtually eliminated. Cables, a tripod with azimuth and elevation head, and a tripod carrying case accompany each antenna kit. Everything you need for any of your compliance testing. Click on a model above to learn more about it's characteristics.
