Key Features & Specifications
Keysight 85059B 1mm Calibration Kit
Specifications
General Specifications
- Data-Based model
- Short 1, 2, 3, & 4 male and female
- Frequency (GHz) / Deviation from Nominal Phase Degrees
- DC to 20 / 1.50
- 20 - 50 / 2.30
- 50 - 80 / 3.25
- 80 - 100 / 3.50
- 100 - 120 / 4.00
- Open male and female
- Frequency (GHz) / Deviation from Nominal Phase Degrees
- DC to 20 / 2
- 20 - 50 / 3
- 50 - 80 / 7
- 80 - 100 / 8
- 100 - 120 / 8
- Load male and female
- Frequency (GHz) / Return Loss (dB)
- DC to 18 / 30
- 18 - 40 / 26
- 40 - 50 / 24
Description

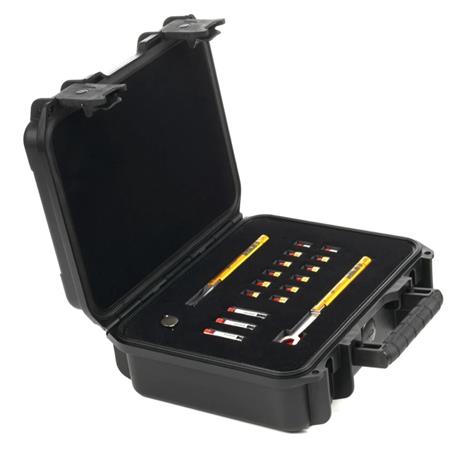

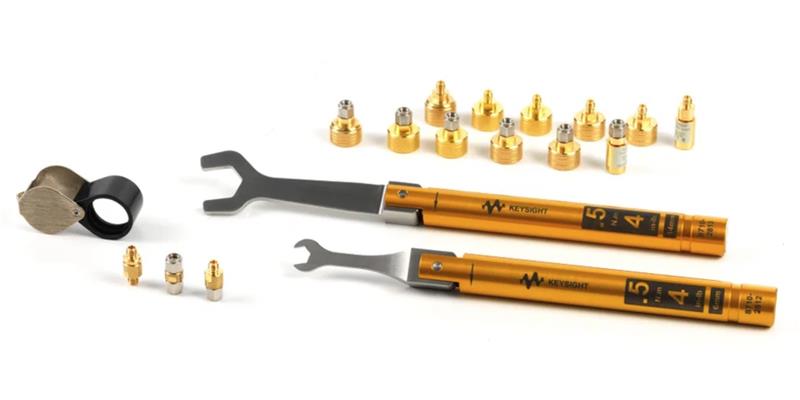

The Keysight 85059B is a 1.0 mm calibration/verification kit designed for vector network analyzer systems operating over the frequency range of DC to 120 GHz. The opens, shorts and loads in this kit were optimized to provide accurate calibrations over the specified frequency range.
