Key Features & Specifications

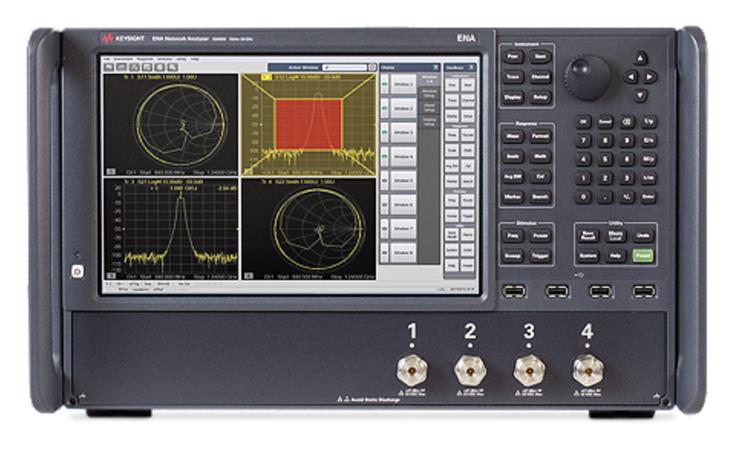

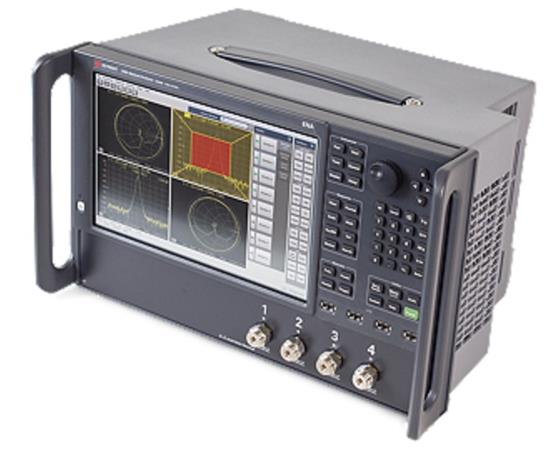

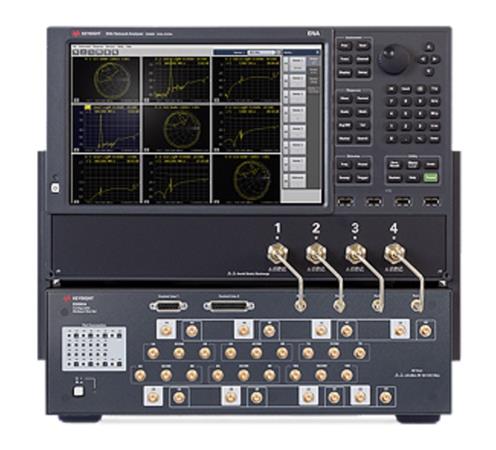

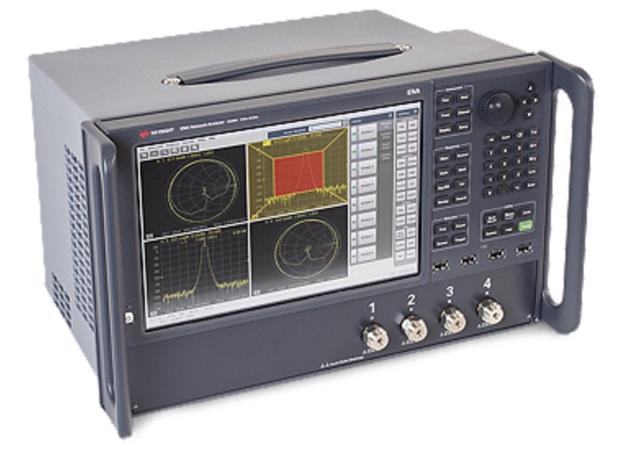

Keysight E5080B ENA Vector Network Analyzer
- Number of Built-In Ports 2 or 4 ports
- Dynamic Range 140 dB
- Maximum Frequency 53 GHz
- Output Power 10 dBm
- Trace Noise 0.0015 dB rms
- Type Benchtop
Specifications
Physical Specifications
- Applications:
- Signal Integrity
- Balance Measurements
- S-Parameters
- Best Speed at 201 Point, 1 Sweep 2 ms
- Components:
- Cables
- Antennas
- Mixers/Frequency Converters
- Filters/Duplexers
- Amplifiers
- Connectors
- Isolators
- Dynamic Range 140 dB
- Instrument Type Benchtop
- Maximum Frequency 53 GHz
- Minimum Frequency 9 kHz / 100 kHz
- Number of Built-In Ports 2 or 4 ports
- Output Power 10 dBm
- Type Benchtop
- Temperature Stability 0.005 dB/ ⁰C (Typical)
- Trace Noise 0.0015 dB rms
- Weight 14 kg (2-port), 15 kg (4-port)
Additional Specifications
- RF Connectors
- Connector type
- Type-N female (Option 240/260/290/440/460/490/442/462/492, 2D0/2H0/4D0/4H0/4D2/4H2 with option 1NC)
- 3.5 mm male (Option 2D0/2H0/2K0/2L0/4D0/4H0/4K0/4L0/4D2/4H2/4K2/4L2)
- 2.4 mm male (Option 2M0/2N0/4M0/4N0/4M2/4N2)
- 1.85 mm male (Option 2P0/4P0/4P2)
- Impedance
- 50 ohm (nominal)
- USB Ports (4-ports)
- Standard Compatible with USB 2.0
- Connector USB Type-A female
- Display
- Size 31 cm (12.1 inch) diagonal color active matrix LCD with multi-touch screen
- Resolution 1280 (horizontal) X 800 (vertical) resolution
Description
As devices become highly integrated, complete characterization requires a complete RF and microwave measurement solution. The E5080B provides R&D performance up to 53 GHz and advanced test flexibility. Best-in-class dynamic range, trace noise, and temperature stability guarantee reliability and repeatability. Network analyzer software tools enable you to investigate, characterize, and troubleshoot your designs in a variety of measurement applications. Simplify complex measurements on your E5080B with software applications such as advanced time domain analysis, spectrum analysis, pulsed-RF measurements, and more.
