Home / Signal Generators / Berkely Nucleonics / 845
Berkely Nucleonics 845 100 kHz to 26.5 GHz Microwave and RF Signal Generator Signal Generator





product image
    •
    •
    •
    •
Manufacturer: Berkely Nucleonics Product Series: 845
Base Model: 845 Total Listings: 75 Units
Description: 100 kHz to 26.5 GHz Microwave and RF Signal Generator Signal Generator
Data Sheet PDF: Download 845 Data Sheet
Average New 845 Price: Get Quote
Average Used 845 Price: Get Quote
Estimated Rental Rate :
Get Quote
Average Lease Rate : Get Quote
845 Calibration Price: $150
* Rates depend on unit configuration, duration of the rental, and inventory levels and will vary from TestUnlimited estimates. Rental Tips
**Lease rate estimates are based on "A" credit rating, 60-month term. Unit configuration and inventory levels will cause the rate to vary from the estimate above. Benefits of Leasing
Quote Now !













Add message to dealer?



Quote 845 Now !

AVAILABLE INVENTORY

PRODUCT OPTIONS

PRODUCT SPECIFICATIONS

PRODUCT OVERVIEW

VIDEO & LITERATURES

USER REVIEWS

FORUM

GET QUOTE
Berkely Nucleonics 845 Inventory Listings and Pricings
Filter by:         APPLY FILTER

  PRODUCTRESELLERLIST PRICENEW PRICEUSED PRICE
4854845A
Keysight 54845A
1.5GHz 4CH Digital Scope
 (1)
$30,495-$30,495
48E5845A
Keysight E5845A
46ch Single-ended ZIF probe for DDR3 x16 DRAM BGA 90-pin cable
 (1)
$2,133-$875 59% off!
154LR8450-01
Hioki LR8450-01
The LR8450-01 is a MEMORY HiLOGGER (Wireless LAN equipped model, main unit only) portable data logger from Hioki.

-$2,462-
1548845A-EFPT
Fluke 8845A-EFPT
The 8845A-EFPT is an accessory from Fluke.

-$38-
2354845A
Keysight 54845A
Keysight / Agilent 54845A Oscilloscope, 1.5 GHz, 4 Ch., 8 GS/s
 (2)
---
2361845
Chroma 61845
Chroma 61845 Regenerative Grid Simulator, 45 kVA
 (2)
---
48154845A
Keysight 54845A
1.5GHz 4CH Digital Scope

$30,495-$30,495
481KT-54845A
Keysight KT-54845A
1.5GHz 4CH Digital Scope

$30,495-$30,495
49654845B
Keysight 54845B
Agilent / HP 54845B 4 Channel, 1.5 GHz, 8 GSa/s Infiniium Digital Oscilloscope

--$6,450
14454845A
Keysight 54845A
54845A Infiniium Oscilloscope 4 Channels 1.5 GHz up to 8 GSas
 (2)
--$5,995
454845A
Keysight 54845A
"Infiniium 1.5 GHz bandwidth, four channel Digital Storage Oscilloscope. 8 GSa/S Sampling."

--$5,995
49654845A
Keysight 54845A
Agilent / HP 54845A 4 Channel, 1.5 GHz, 8 GSa/s Infiniium Digital Oscilloscope

--$4,950
11114845
ETS 114845
8-Channel Low Noise Amplifier, w/RF-Lambda RLNA01M06GE Amplifiers
 (2)
--$4,195
493114845
ETS 114845
8-Channel Low Noise Amplifier, w/RF-Lambda RLNA01M06GE Amplifiers

--$4,195
13054845A
Keysight 54845A
Agilent / HP 54845A 1.5GHz 4 CH Digital Oscilloscope, Refurbished

--$3,595
5308453 / G1103A
Keysight 8453 / G1103A
Agilent 8453 UV Vis spectrophotometer G1103A TESTED with Warranty SEE VIDEO

--$3,495
39054845A
Keysight 54845A
4 Ch 1.5 GHz Infiniium Oscilloscope

--$3,450
428LR8450-01
Hioki LR8450-01
Hioki LR8450-01 Memory HiLogger

--$2,805
35654845A
Keysight 54845A
Agilent HP 54845A 1.5Ghz 8Gs/s Oscilloscope up to 60 DAY WARRANTY

--$2,799
298Z8451
Litepoint Z8451
Litepoint_Z8451: 300 MHz I/Q Digitizer, Untested (23453)

--$2,500
Current Page: 1 of 4Jump to other pages: 1234NextLast
  Please select the Condition of the item
✖
Berkely Nucleonics 845 Specifications
Frequency Range26.5 GHz
Similar Products
8673D
KEYSIGHT
8673D (8673D)
Synthesized Signal Generator
Keysight 8673D
2526
AEROFLEX
2526 (2526)
2526 - Aeroflex 2526 26.50GHz Signal Generators
Aeroflex 2526
6313
AEROFLEX
6313 (6313)
6313 - Marconi 6313 26.5GHz Sweeper Generators
Aeroflex 6313
Berkely Nucleonics 845 Product Overview
( own it? please share by Add Your Own Review! )

Key Features & Specifications

Berkely Nucleonics - 845 Series - 845 100 kHz to 26.5 GHz Microwave and RF Signal Generator

  • High Output Power
  • Low Phase Noise
  • Comprehensive AM, low-distortion, wideband DC-FM, and high-speed pulse modulation
  • Powerful Trigger and Sweeping modes
  • Portable battery operation

Specifications

Frequency Range 845-12: 100 kHz to 12 GHz, 845-20: 100 kHz to 20 GHz, 845-26: 100 kHz to 26.5 GHz Resolution: 0.001 Hz
Power Range: -20 to +15 dBm (-90 to +25 dBm with option PE3 and HP) Resolution: 0.01 dB
Switching Speed 400 µs (<30 µs with option FS)
Phase Noise ( 1 GHz CW ) 10 Hz offset: -80 dBc/Hz, 1 kHz offset: -117 dBc/Hz, 100 kHz offset: -128 dBc/Hz, 10 MHz offset: -150 dBc/Hz

Description

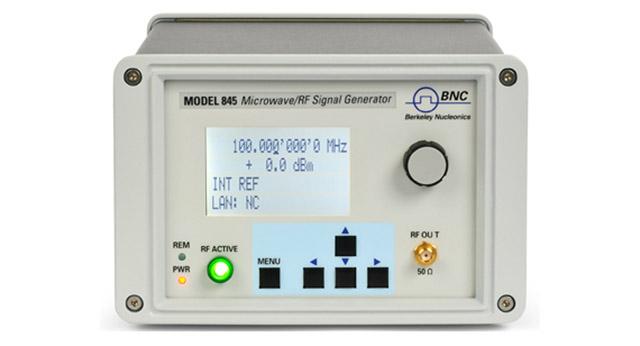

Berkeley Nucleonics' Model 845 RF Microwave Signal Generator is a low-noise and fast-switching microwave signal generator covering from VLF to K-band, 100 kHz up to 26.5 GHz (with the option to extend the frequency down to 9 kHz). The Model 845 Microwave RF Signal Generator offers a wide and accurately-leveled output power range with high spurious suppression. Advanced frequency synthesis with fractional-N divider makes for low SSB phase noise and sub-Hertz frequency resolution.

The Model 845 is available in 12, 20, & 26.5 GHz frequencies with a touch screen display. In addition, Model 845 can be customized and configured to each user's specific needs.


More details on Berkely Nucleonics website
Berkely Nucleonics 845
PRODUCT IDPRODUCT RATINGMANUFACTURERBASE MODELCATEGORYDESCRIPTION
8514 Berkely Nucleonics845Signal Generators100 kHz to 26.5 GHz Microwave and RF Signal Generator
Berkely Nucleonics 845 Related Literature
Can not find any related application notes
Berkely Nucleonics 845 User Reviews
No user reviews yet. Please share your experience and be the first to review this product!
