Key Features

• Four-port R&S®ZNBT8 base unit (upgradeable to 8, 12, 16, 20 or 24 ports)
• Eight-port R&S®ZNBT20 base unit (upgradeable to 12 or 16 ports)
• Frequency range from 9 kHz to 8.5 GHz (R&S®ZNBT8) or from 100 kHz to 20 GHz (R&S®ZNBT20)
• Wide dynamic range of up to 140 dB
• Short sweep times (e.g. 6 ms for 201 points)
• Wide power sweep range of 100 dB
• High power handling capacity
• IF bandwidths from 1 Hz to 10 MHz
• High temperature stability of 0.01 dB/°K
• More than 100 traces and channels
• Simple configuration of multiport measurements
• Manual and automatic calibration methods optimized for multiport applications
• Compatible with all vector network analyzers of the R&S®ZVx and R&S®ZNx product families

Features and Benefits

• Platform for challenging multiport measurements
• When speed counts
• Excellent measurement characteristics

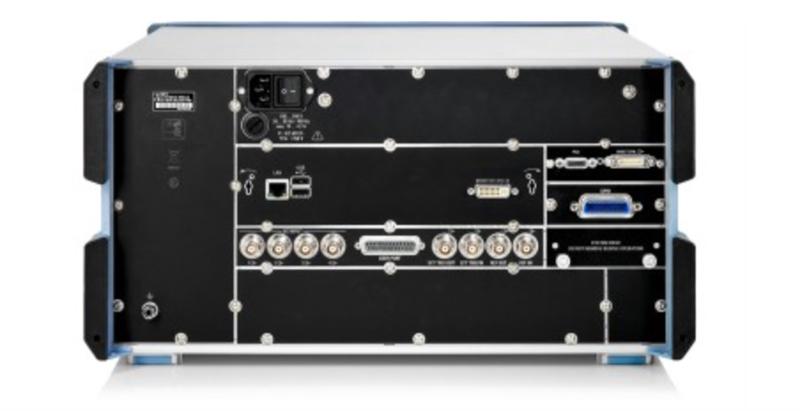

Brief Description

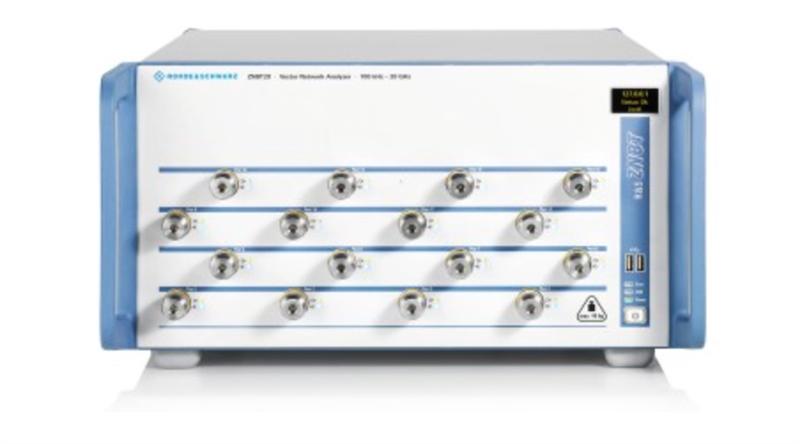

The R&S®ZNBT is the first multiport vector network analyzer offering up to 24 integrated test ports.
